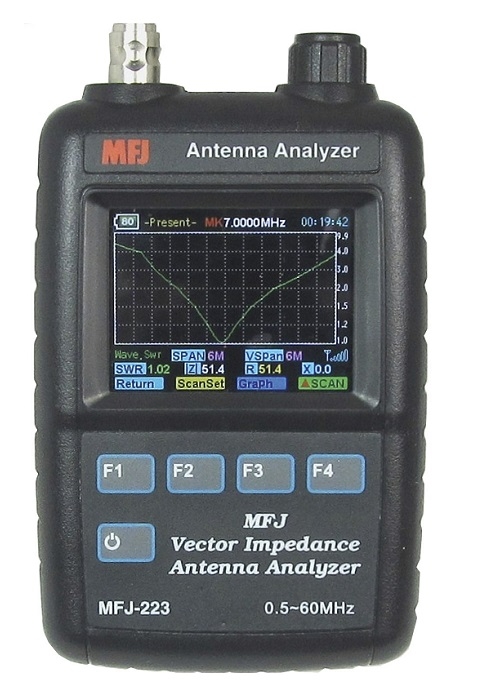

MFJ-223 1-60 MHz Color Graphic VNA Analyzer

Pocket-Size, Truly accurate SWR, R, X and Z!

Get continuous DDS frequency coverage with 100-Hz resolution and a full selection of tuning steps and sweeps.

There`s a movable marker that calls up alpha-numeric data for any point on any plot and a memory to capture current data when you turn the analyzer off.

Specification

• Single-frequency and swept frequency operating modes
• Truly accurate SWR, R, X, and Z measurements
• Seamless DDS coverage with 100-Hz resolution from 1-60 MHz
• Smooth "skip-free" encoder tunes fast or slow without missing a step
• Powerful +5-dBm stimulus generator overrides local interference
• Field-strength meter measures local signals, detects potential interference
• DDS generator precision signal source
• Vivid 1600-pixel/inch color graphics on a 2x2 inch non-glare TFTscreen
• High-lumen output, easy to read in direct sunlight
• Easy setup, only four control switches with convenient on-screen soft menus
• Personalized ID function programs your call or name onto the display
• Built-in 3.7-V 1800- mAH lithium-polymer battery charges with Battery Status Indicator and Auto Shut-off.
