"As I got older, my high frequency hearing loss was destroying my ham radio for me..." - Martin F. Jue, K5FLU President and Founder MFJ Enterprises, Inc.

I know Im not the only ham who cant understand all the speech in a QSO caused by high frequency hearing loss. I developed a solution that I want to share with my fellow hams.

I almost gave up my ham radio hobby

I have been a passionate ham radio operator for over 40 years ever since I was a teenager. I loved every minute of it. Still do, but I almost had to give it up. As I grew older (Im 56 now) I found myself asking "What did you say?" so often it got downright embarrassing. I can hear pretty good most of the time. I just cant always understand what people are saying and my left ear is weaker than my right ear. It got to where I was having trouble carrying on QSOs. I could hear, but I just couldnt quite make out all the words. My hearing problem almost put a stop to my lifelong hobby. There was no way I was going to give up ham radio...

Research showed me what to do.

I searched the literature and spoke to hearing and speech experts. According to their research on intelligibility of speech in hearing English words:

1.The frequencies important for speech intelligibility are the consonant sounds from 500 to 4000 Hz. They contribute 83% of word intelligibility. Frequencies from 500 to 1000 Hz contributes 35% of word intelligibility and 35% of sound energy. Frequencies from 1000 to 4000 Hz contributes 48% of intelligibility but has only 4% of sound energy!

2. In contrast, frequencies from 125 to 500 Hz contributes 55% of sound energy but only 4% to word intelligibility. In other words, nearly half the speech intelligibility is contained in 1000 to 4000 Hz frequency range with only 4% of the speech sound energy. On the other hand, the low frequencies 125 to 500 Hz have most of the speech energy but contribute very little to intelligibility.

How I improved my ability to hear and understand QSOs The research showed me what to do. First, drastically increase the speech energy above 500 Hz where 83% of intelligibility is concentrated. Second, drastically reduce the speech energy below 500 Hz that contributes only 4% of intelligibility. Amateur radio communications limit audio to about 300 to 2700 Hz. I split the audio band into four overlapping octave ranges centered at 300, 600, 1200, 2400 Hz. I could boost or cut each range by nearly 20 db to give me full control. This let me maximize speech intelligibility for most kinds of frequency loss. My left ear is weaker than my right ear so I split the output audio into left and right channels with separate 2.5 watt amplifiers. A balance control lets me equalize the perceived loudness to each ear. Now both ears help in improving speech intelligibility!

I couldnt believe my ears! I built one and hooked it to my rig. I boosted the high frequencies, cut the low frequencies, set the volume and adjusted the balanced control so I could hear each side equally loud. I couldnt believe my ears! Speech that I could hear but barely understand before was now highly understandable. I got my ham radio back! With this concept youll understand QSOs better and enjoy ragchewing and contesting more, even if you dont have high frequency hearing loss.

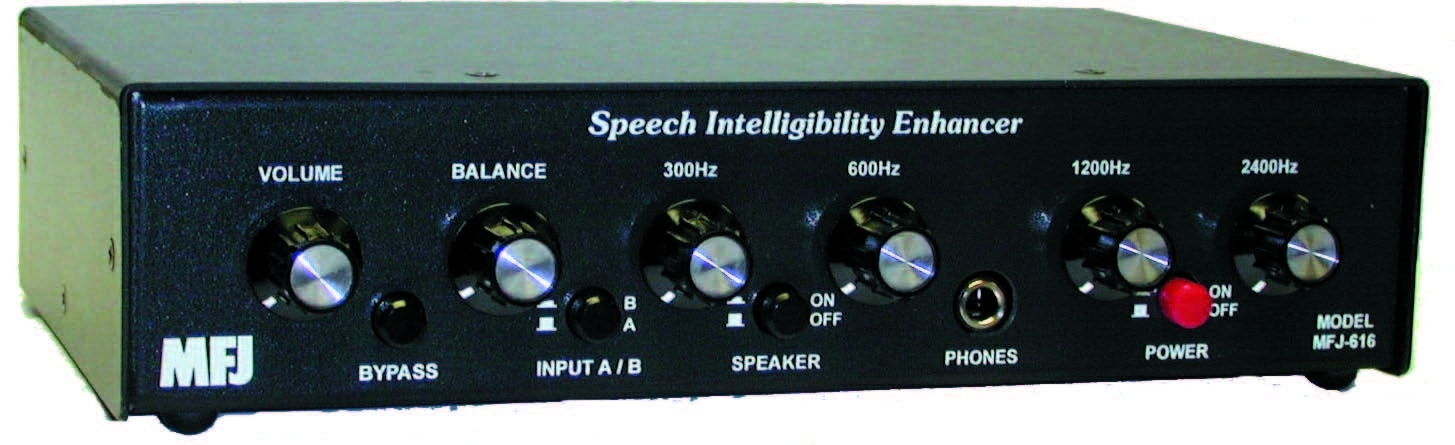

It helped me so much I wanted to share this with my fellow hams. I developed this into an accessory that any ham can use. I made it immune to RFI, added a front panel phone jack, on/off speaker switch, two selectable transceiver inputs, a bypass switch for in/out comparison and built into 10" x 2.5" x 6" inch aluminum enclosure. Needs 12 VDC.

MFJ-1316 - 110VAC operation power supply. Provides 12 VDC/1.5 Amps

The MFJ-72 Accessory Pack for the MFJ-616 and MFJ-618 contains the a set of MFJ-292B headphones, two MFJ-281 speakers, and the MFJ-1316 power supply.

Other uses Replace your rigs audio section for superb audio. Eliminate hum, buzzes, poor frequency response, low power. Works with SSB, FM, AM, CW - any voice mode. Use any rig; ham, marine, aircraft, CB. Use for PA systems, internet phone, radio talk shows.
