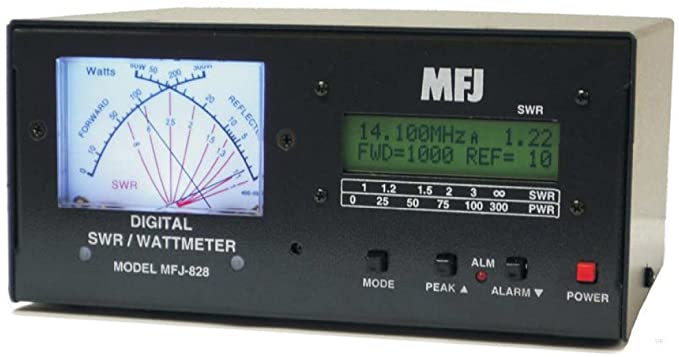

Discontinued MFJ-828 - Digital SWR/Wattmeter

The MFJ-828 digital SWR/Wattmeter/Frequency Counter. It has three highresolution ranges with accuracy in each range from 1.8 to 54 MHz.

There is a QRP range (25 watts full scale), a mid-range (250 watts full scale) and a high-range (1500 watts full scale). TrueActive peak reading circuit gives true peak or average power on all modes.

Built-in frequency counter gives any transmitter digital frequency readout in continuous carrier mode.

It includes MFJs Amplifier Bypass Control. This protects your amplifier by taking your amplifier off-line should the SWR increase above a user-defined pre-set limit. There is a relay connector with normally open and normally closed connections that toggle when the SWR is above the same pre-set limit.

It enters a sleep mode when idle and when no transmit signal is present, turning off the microprocessor clock to avoid the generation of spurious signals.

Features

• Power range of 25, 250 or 1500 watts
• 1.8 to 54 MHz continuous frequency coverage
• Adjustable alarm SWR from 1.5 to 3.0
• Amplifier Bypass Control automatically protects your amplifier during high SWR events
• Lighted cross-needle SWR/wattmeter with auto-ranging
• Multifunction backlit LCD display with contrast control
• Numeric readings for frequency, SWR, forward and reflected power
• Bar meters for SWR, forward and reflected power with auto-ranging
• Peak or average power mode
• Built-in frequency counter
• Built-in bootloader for field upgradeable firmware
