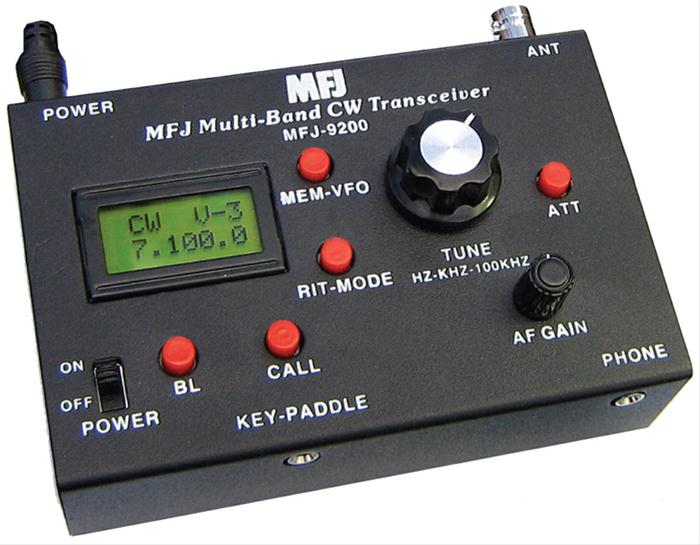

MFJ 9200 series QRP CW Travel Radios deliver unmatched QRP CW performance in a compact pocket-sized package. QRP radios have always been small in size, but thanks to direct-digital synthesis and microprocessor technology, the MFJ-9200 Series represents a quantum leap over traditional designs.

It uses computer-modeled swappable-plug-in filter modules that yield no-compromise receiver performance and solid QRP transmit power on their assigned band. Band modules are included for one band, but additional optional modules allow any 9200 Series radio to operate on other bands.

There's also built-in iambic keying with a manual-key sensor, a programmable CQ message, and seamless QSK T/R switching. DDS frequency control delivers rock-solid stability, precise 100-Hz readout. Plus, you get a choice of three main-dial tuning rates and RIT with 10-Hz tuning resolution.

Other features include selectable IF bandwidth for monitoring SSB or CW, a 20-dB frontend attenuator for overload protection, and a switched backlight for the LCD display.

MFJ-9200 Series radios run on any power source between 8 and 15 VDC and draw a miserly 40 mA on receive with the display backlight turned off. They're perfect for prolonged off-the-grid adventures. Best of all, the QR-Pocket Radio is the smallest and lightest backpack transceiver currently available.

Transceiver operation is intuitive, easy-to-master, and clearly explained in an easy-to-understand manual.

Specification

• Frequency Control: DDS, 60-MHz reference frequency
• Tuning Step: 100-Hz, 1-kHz, and 100-kHz
• VFO Memories: 8 per band
• VFO Display: LCD, 802-pixel, switched backlight
• VFO Display Frequency Resolution: 100-Hz, 10-Hz with RIT activated
• Operating Modes: Transmit - A1 (CW), Receive - A1, A3J (LSB or USB)
• CW Offset: approximately 700 Hz
• T/R Switching: Full QSK
• Receiver MDS: 0.1-uV
• AGC Threshold: 3 to 5-uV
• Bandwidth: Selectable, 600-Hz CW, 2.5-Hz SSB
• Audio Output: 100-mW, 8-Ohm load, stereo plug
• Receiver Current Drain: Approximately 40-mA no backlight, 80 mA with backlight on
• Transmitter Keying: Iambic automatic, straight-key sensing, CQ memory
• Speed Range: 3-45 WPM
• Transmitter Power: 5-W or better, supplied band, at 12.6 Volts
• Harmonic and spurious suppression: -50 dB or better, all operating voltages
• Typical Transmit Current: 0.9A at 10V, 1.2A at 14V
• Supply Voltage: 8-15 VDC at 1.5A maximum
• Dimensions: 120 x 80 x 34mm
• Weight: 7.4 oz.
• Frequency range: Receive: 5.9-7.5 MHz, Transmit: 7.0-7.3 MHz
