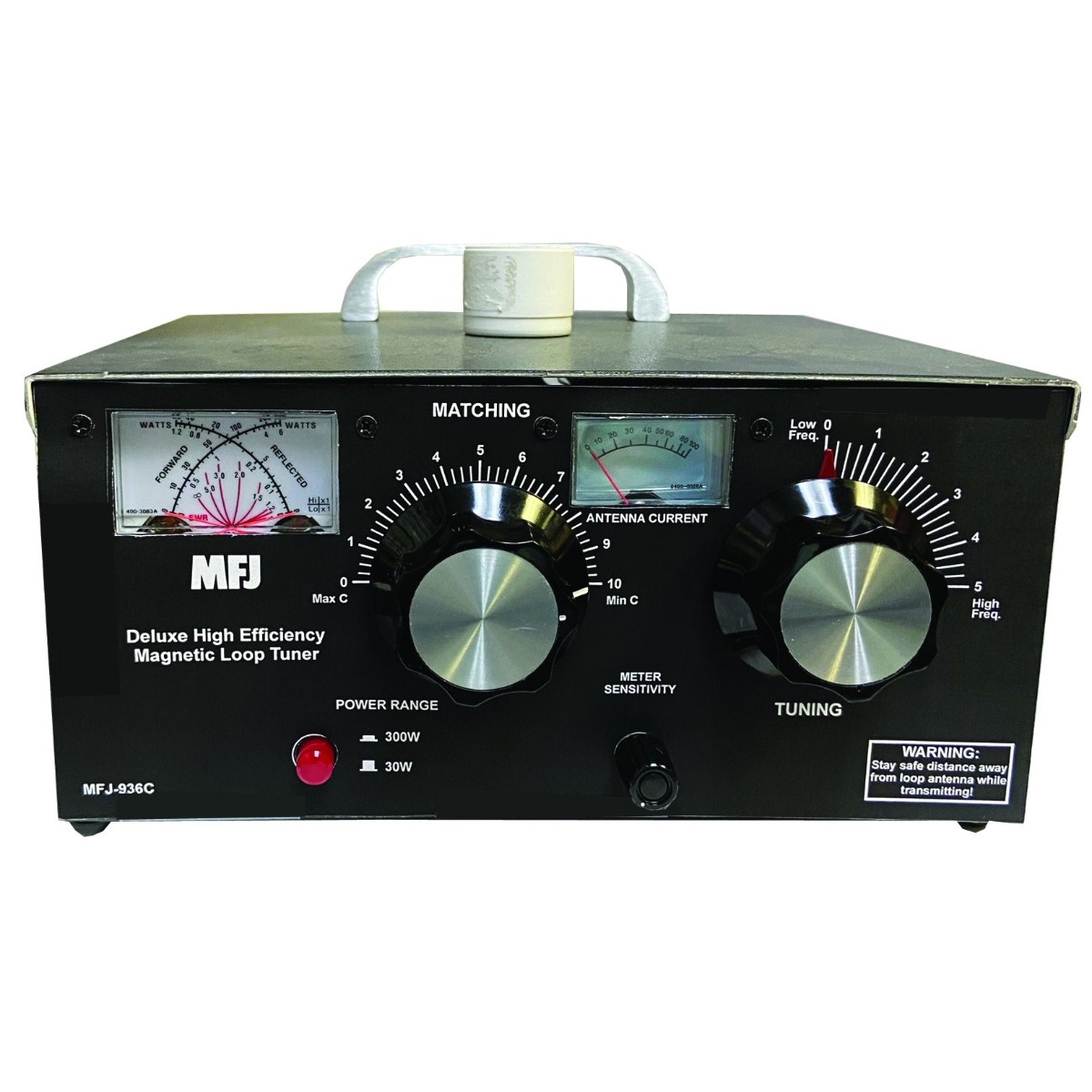

Turn wire or coax into a small, high-efficiency multi-band transmitting magnetic loop antenna! Work the world from 3.5 to 30 MHz using a full 150 Watts on sideband, CW, and digital.

No ground, radials, or counterpoise needed. A new 313 pF matching capacitor increases the matching range, and a high-efficiency butterfly capacitor has no lossy rotating contacts. Small magnetic loops are very quiet on receive. You'll hardly notice static crashes. The high-Q design reduces QRM, overloading, and harmonics.

It's perfect for apartments, antenna-restricted areas, and portable operations. Loops can be as small as 4' for 17m-10m, 7' for 20m-15m, 28' for 60m-40m, and 50' for 80m. Loops don't have to be pretty. Any shape will work!

Includes and Easy-Carry handle, a mount for a PCV loop support, and a tripod/mast mount.

Technical Specifications:

• Frequency Range: 3.5-29.7 Mhz
• Max. Power: 150w
• Meter: SWR / power cross meter, scale 300/30W switchable
• Meter: Antenna power meter
• Dimensions: 159mm x 241mm x 133mm
