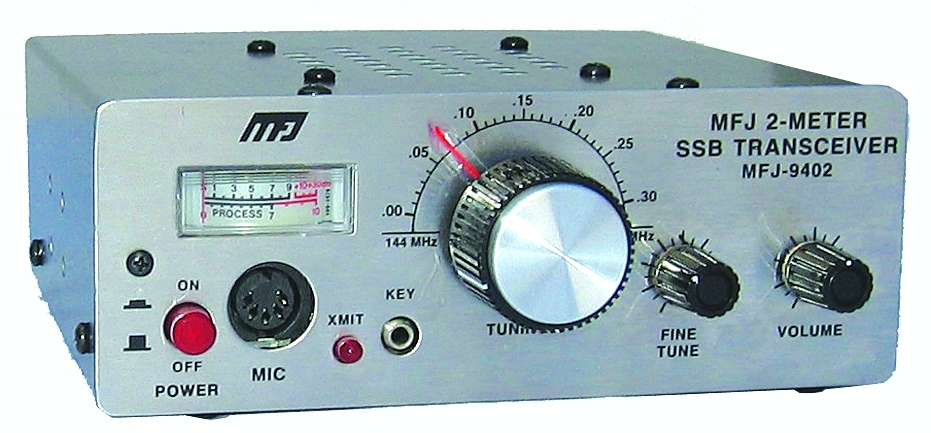

Discontinued MFJ-9402 - 2 Meter SSB Transceiver
No CodeTechs and veterans join the SSB crowd! Enjoy crystal clear armchair QSOs. DX, ragchew or hunt down new grid squares from far away places from your home, car or mountain top. This little rig is great for home contesting or mobile.
- SKU
- 54-332
£389.99
Description / Discontinued MFJ-9402 - 2 Meter SSB Transceiver
MFJs 2 Meter SSB Adventure Radio packs If a signal is there, you`ll hear it.
The MFJ-9402X comes with both the MFJ-9402 and the MFJ-290 microphone.
Specifications
Receiver Section
- Frequency Coverage: 144.000-144.300 MHz
- Receiver Type: Single-conversion superhet
- Frequency Control: Crystal-heterodyne VFO, low-side injection
- IF Frequency: 10 MHz
- IF Selectivity: -6 dB @ 2.3 KHz
- AGC: Audio-derived, 70-dB range
- Sensitivity: MDS .1 uV, S9 = 10 uV
- AF Output: 500 mW speaker, 100 mW phones
- Average Rx Current: 60-mA, (S-meter lamp disabled)
Transmitter Section
- RF Power Output: 7 watts PEP into 50 ohms
- VSWR Tolerance: 3:1 or greater
- Peak Tx Current: 1.5 Amps (13.8 vdc)
- Spurious Attenuation: -60 dBc or better
- CW Generation: A1 carrier, adjustable offset
- Mic Input: 600-Ohm dynamic, PTT
