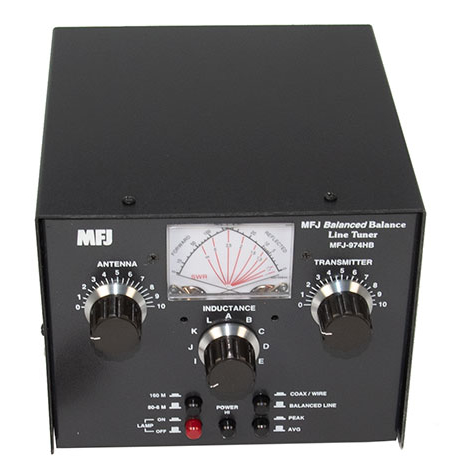

The MFJ-974HB is a fully balanced true balanced line antenna tuner.

It gives you superb current balance throughout its very wide matching and frequency range.

The MFJ-974HB gives you excellent current balance, very wide matching range (12-2000 Ohms) and covers 10-160M continuously including all WARC bands. Handles 300 Watts SSB PEP and 150 Watts CW.

Just three tuning controls. You can even adjust for highly efficient broadband low-Q operation or use higher Q when you encounter extreme loads.

The MFJ-974HB tunes any balanced lines including 600 Ohm open wire line, 450/300 Ohm ladder lines, 300/72 Ohm twin lead - shielded or unshielded.

Superb current balance minimizes feedline radiation that can cause troublesome TVI and RFI, painful RF bites, mysterious RF feedback problems and radiation pattern distortion.

It is a fully balanced wide range T-Network using four gear driven 1000-Volt air variable capacitors and high-Q air wound tapped inductor for 80-10 Meters and separate inductors for 6 and 160 Meters.

The tuning components are mounted symmetrically to insure electrical balance. A 1:1 current balun is placed on the low impedance 50 input side to convert the balanced T-Network to unbalanced operation.

Features/Specification

• 10-160M
• Handles 300W PEP, 150W CW
• Fully balanced 'T' match network
• 1:1 current balun
• Cross needle SWR/Wattmeter 30/300W ranges
• Matches 600 Ohm open wire, 450, 300 Ohm ladder lines, 300/72 Ohm twin, coax & random wires
• High-Q air wound tapped inductor
• 4 gear 1000V air variable capacitors
• 3 tuning controls
• 12V DC illuminated meter
• Size 190 x 152 x 203mm approx
