DISCONTINUED MTU-160 - Tuning Unit Module (For 160m Band)
- SKU
- 18-460
Description / DISCONTINUED MTU-160 - Tuning Unit Module (For 160m Band)

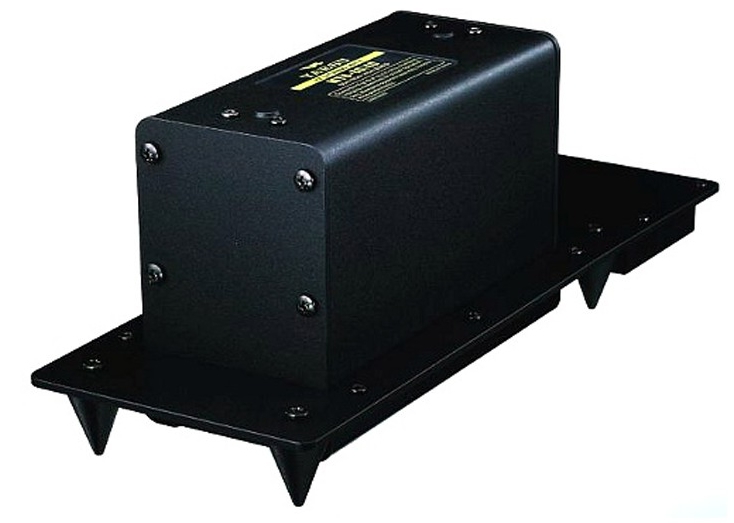

The Yaesu MTU-160 is a µ-Tuning unit made for optional internal installation on the FTDX-9000MP and FTDX-9000 Contest Transceivers. (Factory installed on the FTDX-9000D)
When µ-Tuning is engaged, the standard VRF (Variable RF Preselector) system is bypassed, but the fixed Bandpass Filters are still in the received signal path.
The µ-Tuning filters utilize a stack of large 1.1" (28 mm) Ni-Zn Ferrite cores, driven through a silver-plated coil assembly by a precision stepper motor. The resulting high Q (typically over 300) provides a very steep resonance peak near your operating frequency. The peak may be adjusted away from your frequency, for even greater protection from a specific station, and a graphical depiction of the µ-Tune filter alignment appears on the front panel of the transceiver.
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109210944 |
| Manufacturer | Yaesu |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
