B Grade

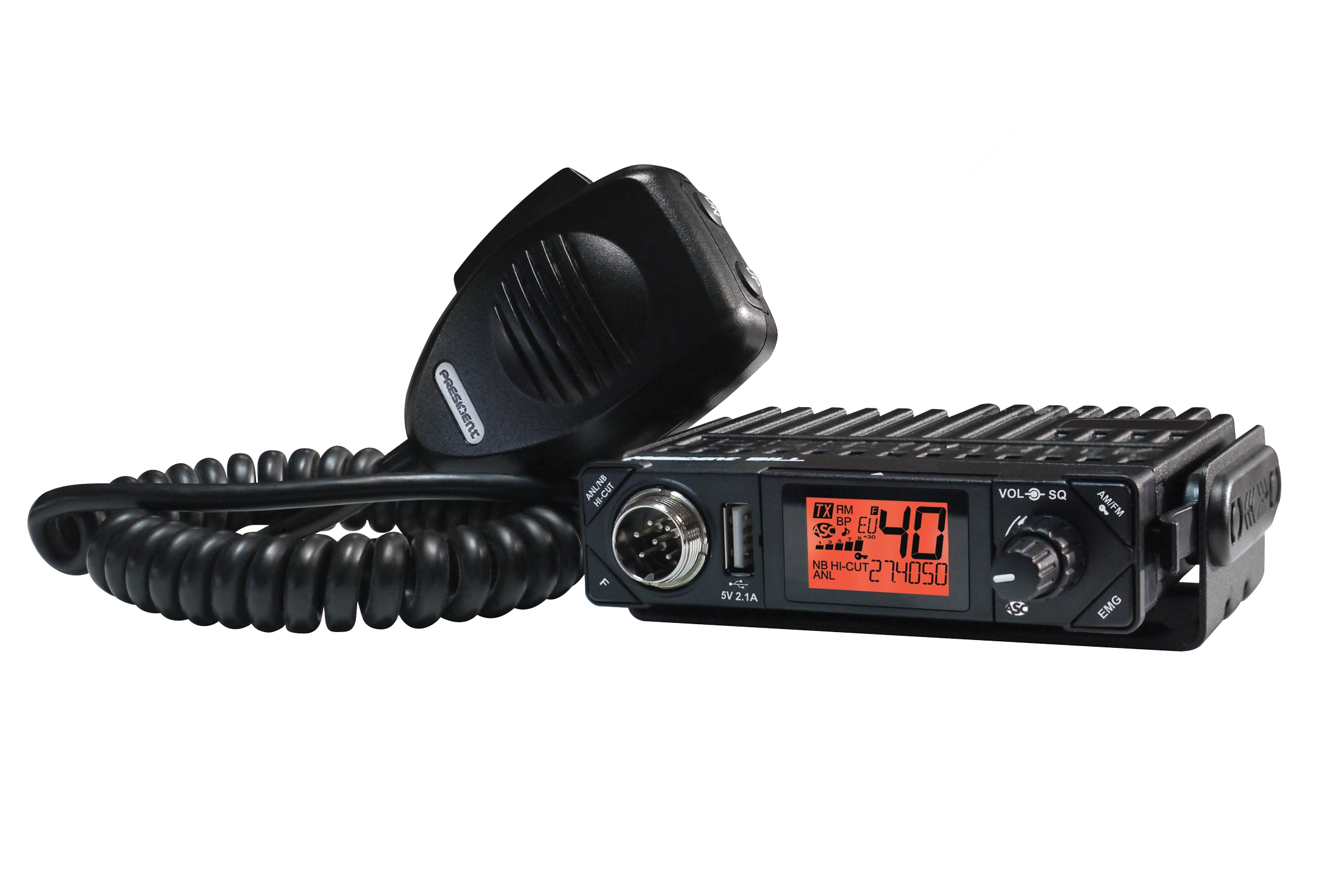

Mark II version - now with added Vox Function and Scan Skip Function.

General Specifications:

• Modulation Modes: AM / FM
• Frequency Ranges: from 26.965MHz to 27.405MHz
• Number of Channels: 40
• Antenna Impedance: 50 Ohms
• Power Supply: 12V
• Pre-set Channel: EMG (customizable)
• Microphone Plug: front (6 pins)
• Dimensions: 102mm (W) x 100mm (D) x 25mm (H)
• Weight: 320g

Features:

• Supply: 13.2 V
• Up / down channel selector
• Volume adjustment and ON/OFF
• Manual squelch
• ASC
• LCD multifunction Display
• Frequencies display
• Digital S-meter
• Vox
• Filter ANL
• Filter NB
• Filter HI-CUT
• Scan
• F / Menu function key
• Key Beep
• Roger beep
• Key locking
• External loudspeaker jack

Transmission Specifications:

• Frequency Allowance: +/- 200 Hz
• Carrier Power: 4 W AM / 4 W FM
• Transmission Interference: inferior to 4 nW (- 54 dBm)
• Audio Response: 300Hz to 3KHz
• Emitted Power in the Adj. Channel: inferior a 20 μW
• Microphone Sensitivity: 7 mV
• Drain: 1,7 A at 13,2 V
• Modulated Signal Distortion: 2 %

Reception Specifications:

• Max. Sensitivity at 20 dB sinad: 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
• Frequency Response: 300Hz to 3 kHz
• Adjacent Channel Selectivity: 60 dB
• Max. Audio Power: 2.5 W
• Squelch Sensitivity: mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
• Frequency Image Rejection Rate: 60 dB
• Intermediate Frequency Rej. Rate: 70 dB
• Drain: 180 ~ 500 mA (13,2 V)

Supplied Accessories:

• x1 microphone UP/DOWN and its hanger
• x1 mounting bracket with fixing screws
• x1 Quick support
