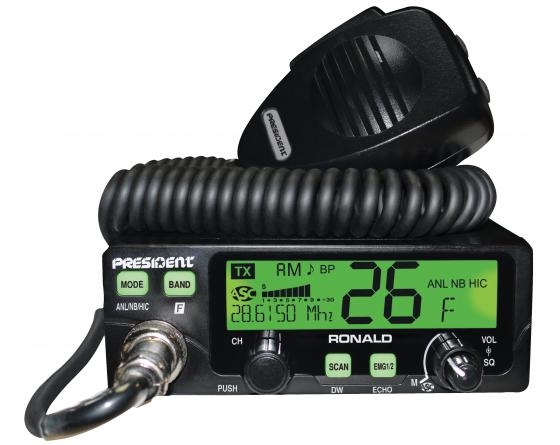

Brand new model, the President Ronald transceiver covers the popular 10 and 12m amateur bands in AM/FM modes,

Features

• Rotary switch channel selector
• Volume adjustment and ON/OFF
• RF Power
• Manual squelch and ASC
• Multi-functions LCD display
• Frequencies display
• S-meter
• Public Address
• ANL filter, NB and HI-CUT
• RF Gain / Mike gain
• Scan
• Talkback
• F function key
• Beep Function
• Roger Beep
• Mode switch AM/FM
• Dual watch
• Span
• Mic type electret / dynamic
• Key locking
• SWR (Power Reading /SWR)
• Preset emergency (EMG 1/2)
• TOT (Time Out Timer) adjustable
• Front microphone plug
• External loudspeaker jack

General

• Modulation modes : AM / FM
• Frequency ranges : 28.000 MHz to 29.700 MHz / 24.890 MHz to 24.990 MHz
• Antenna impedance : 50 ohms
• Power supply : 12 V
• Size : 125 (W) x 175 (D) x 45 (H) mm
• Weight : 0,9 kg
• Accessories supplied : power cord with fuse 1 microphone UP/DOWN and its hanger, 1 mounting bracket with fixing screws

Transmission

• Frequency allowance : +/- 300 Hz
• Carrier power : 13 W AM (50 W PEP) / 35 W FM
• Transmission interference : inferior to - 50 dBm
• Audio response : 300 Hz to 3 KHz in AM/FM
• Emitted power in the adj. channel : inferior to 20 µW
• Microphone sensitivity : 3,0 mV
• Drain : 7 A max. (with modulation)
• Modulated signal distortion : 2%

Reception

• Maxi. sensitivity at 20 dB sinad : 0,7 µV -110 dBm (AM) / 0,35 µV -116 dBm (FM)
• Frequency response : 300 Hz to 3 kHz in AM/FM
• Adjacent channel selectivity : 60 dB
• Maximum audio power : 3 W
• Squelch sensitivity : minimum : 0.2µV - 120 dBm / maximum : 1 mV - 47 dBm
• Frequency image rejection rate : 60 dB
• Intermediate frequency rej. rate : 70 dB
• Drain : 500 mA max
