Condition:

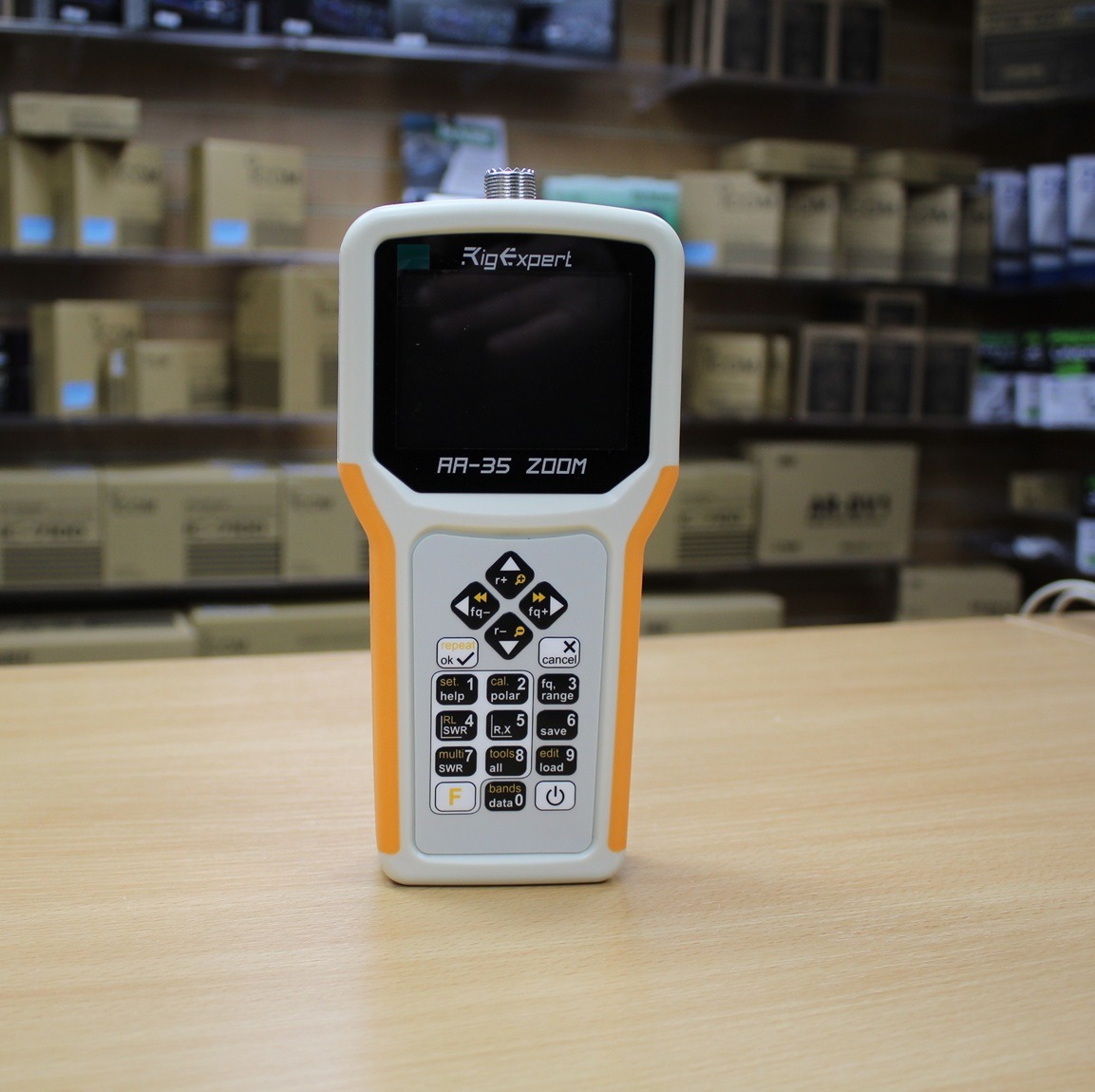

A Perfect like new AA-35 Zoom

Not a mark on it, still has screen protection film fitted

Whats included:

Description:

This analyser is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60kHz to 35MHz

The following tasks are easily accomplished by using this analyser

• Rapid check-out of an antenna
• Tuning an antenna to resonance
• Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
• Making coaxial stubs or measuring their parameters
• Cable testing and fault location, measuring cable loss and characteristic impedance
• Measuring capacitance or inductance of reactive loads

Specification

• Frequency: 0.06 to 35MHz
• Frequency entry: 1KHz resolution
• Measurement for: 25, 50, 75 and 100-Ohm systems
• SWR measurement range: 1-100 in numerical mode / 1-10 in chart mode
• R & X range: 0…10000, - 10000…10000 in numerical mode /0…1000, -1000…1000 in chart mode
• Dimensions: 103mm x207mmx37mm
• Weight:310g (without batteries)
• Operating temperature: 0-40 C (32-104 F)

Display modes

• SWR at single frequencies
• SWR return loss: R, X, Z, L, C and phase angle at single frequency
• SWR Chart: 100 points
• R X Chart: 100 points
• 10 slots to save measurement results

RF Output

• Connector type: UHF (SO-239)
• Output signal shape square 0.06 to 35MHz
• Output power: +13 dBm (at 50 Ohm load)

• Two 1.5V alkaline batteries, type AA
• Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
• When the analyser is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface

• 320×240 colour TFT display
• 6×3 keys on the water-proof keypad
• Multilingual menus and help screens
• USB connection to a personal computer
