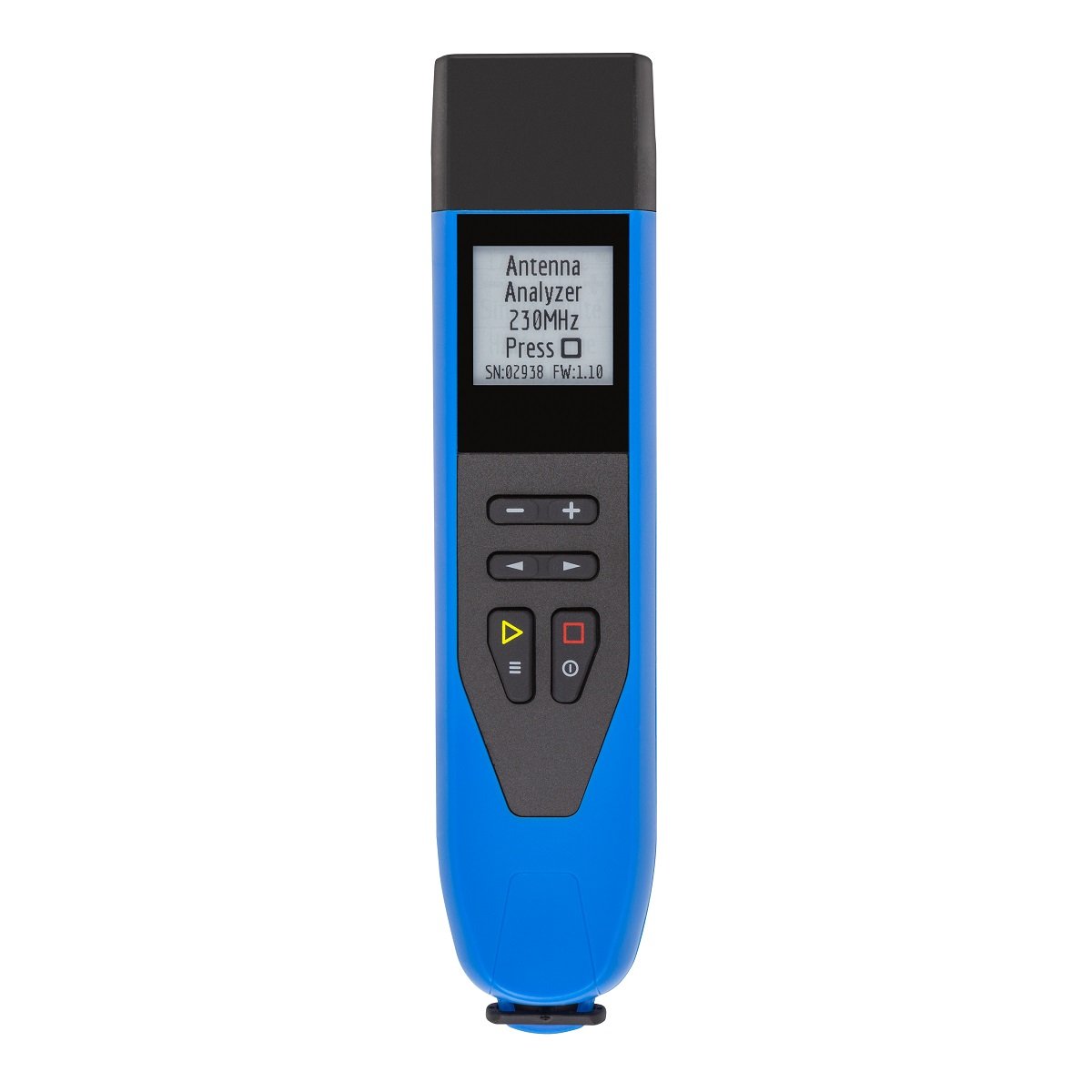

RigExpert Stick 230 (0.01-230MHz) Analyser

This analyser is designed for measuring SWR (standing wave ratio), return loss, as well as other parameters of cable and antenna systems in the range of 100 kHz to 230 MHz.

It is the world’s first antenna analyser capable of 16 hours of continuous measurements without battery recharging.

Small, handy and powerful vector network analyser is designed for measuring most useful parameters of cable and antenna systems in the range of 100 kHz to 230 MHz. Compared with the other devices the Stick is the State-of-the-Art Antenna & Cable Analyzer. Because it has Key benefits: less size you obtain, less weight you carry, less time you measure.

Specification

• Frequency: 0.1 to 230MHz
• Frequency input step: 1KHz resolution
• Measurement for: 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm systems
• SWR measurement range: 1-100 in numerical mode / 1-10 in graph mode
• R and X range: 0… 10000, -10000… 10000
• Dimensions: 185mm x40mmx33mm
• Weight: 185g
• Operating temperature: 0-40 C (32-104 F)
• One lithium-ion battery 3.7 V type 186501
• When the analyser is connected to a PC or a DC adapter with USB socket, it takes power from these sources
• SWR, Return loss: R, X, Z, L, C, magnitude and phase angle at one frequency.
• SWR chart: 100 points.
• Multé mode – for quick testing of a multi-band antenna.
• Connector type UHF (SO-239)
• Output signal shape square 0.1 to 230MHz
• Output power: -10dBm (at 50 Ohm load)
• Monochrome electronic paper display with a size of 200 × 200
• 2 × 3 keys on the waterproof keyboard
• English menu and help screens
• USB connection to a personal computer
• Bluetooth: v. 4.2 (Single-mode, Class B)
