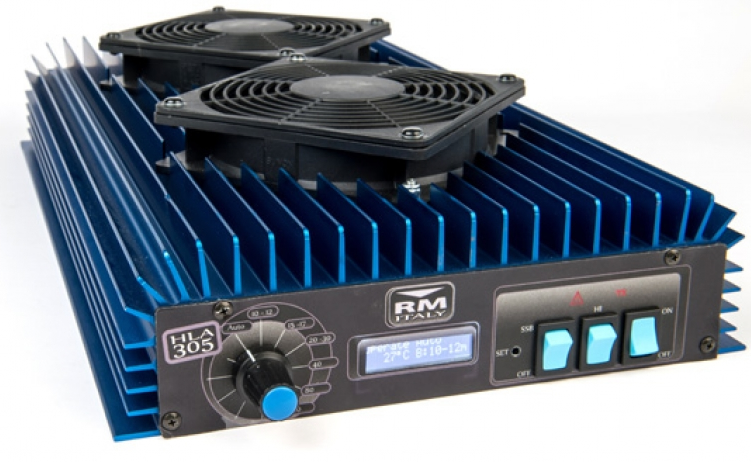

The HLA 305V is a wideband compact amplifier for the HF band covering 1.8-30 MHz Output is nominal 250W at full power, 6 band filter and LCD for Amplifier Status. Input drive from 1W to 10W maximum. Ideal for low power handhelds and FT-817ND etc

PLEASE NOTE: Do not EXCEED Input Power - The manufacturers RM Italy do not repair any amplifiers that have been over driven by mistake under warranty and charges are very expensive - If you are unsure please call or email for further details

Specification

• Output is nominal 250W at Full Power.
• 6 Band filter and LCD for Amplifier Status.
• Input drive from 1W to maximum of 10W.
• Forced multispeed ventilation.
• Frequency: 1.8 MHz-26 MHz and 28 MHz-30 MHz
• Mode: AM FM SSB CW RTTY.
• RF Drive: 1-10 W typ. (15W max). AM/CW
• Output Power: P1db 50-240W AM/FM/CW and 1db typ. max
• 250W max. AM/FM/CW/Average Power
• 400W PEP SSB
• Gain: 13,5 and 1db P1db.
• Power Voltage: 13 Vcc and 2V.
• Input Power: 45 A Max.
• Input Impedence: 50 Ohm (unbalanced).
• Output Impedence: 50 Ohm (unbalanced).
• Final Transister: MRF 455 x 4.
• Circuit: Class AB push-pull.
• Dimensions: 240 x70x 450 mm. Weight: 4 Kg.
