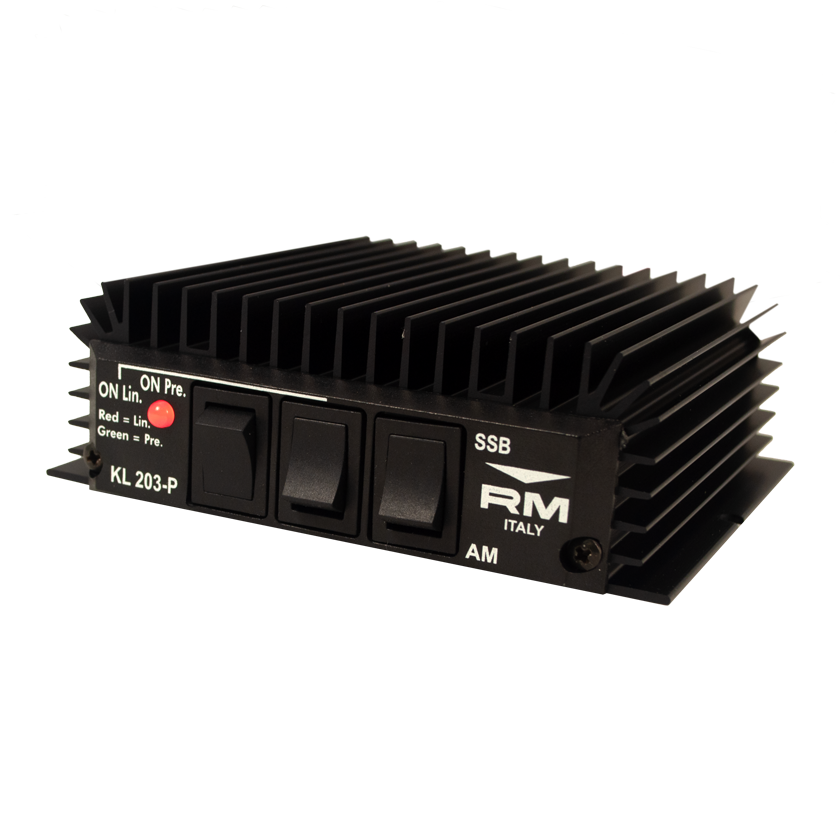

SOLD! B Grade RM KL203P - 25-30MHz (100W) Linear Amplifier With Pre-Amp (Tested)
The KL203P is a 12V linear amplifier for use in the frequency range 28 – 29.7 MHz, with a drive power from 1 to 10W in AM-FM-SSB modes. The KL 203 P also features a 26dB RX preamplifier with electronic switching, which can be activated via a switch on the front panel.
- SKU
- 80-970
£58.95
Description / SOLD! B Grade RM KL203P - 25-30MHz (100W) Linear Amplifier With Pre-Amp (Tested)
B - Grade (Good Condition, Tested by technician)
The KL203P is a 12V linear amplifier for use in the frequency range 25-30MHz with best performance 28–29.7MHz, with a drive power from 1 to 10W in AM-FM-SSB modes. The KL 203 P also features a 26dB RX preamplifier with electronic switching, which can be activated via a switch on the front panel.
This amp uses 4 x MOSFET transistor
Key Features/Specifications:
- Frequency: 25-30MHz (Best Performance 28-29.7MHz)
- Supply: 12-14 Vcc
- Input energy/power: 10 A
- Input power: 0.5-10W
- Output power:100W Max
- Mode: AM-FM-SSB-CW
- Fuse: 12 A
- Size: 109 X 125 X 35mm
- Weight: 325g
- Antenna preamplifier: 26 dB
PLEASE NOTE: Do not EXCEED Input Power - The manufacturers RM Italy do not repair any amplifiers that have been over driven by mistake under warranty and charges are very expensive - If you are unsure please call or email for further details
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | B-Grade |
| Bar Code/EAN | 50600805726320 |
| Manufacturer | RM |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
