The sBitx will neatly slip into your backpack with its compact, slim size and weight of under 4 pounds (less than 2 KGs) with room to spare. With its 25 watt transmit output, it is the most powerful radio you can put into your backpack.

It is armed with an XT60 power connector that you can use with lightweight 3S LiPo batteries to provide hours of field operation (The receive current is 600 mA, the transmit current can go up to 6A depending upon the drive settings).

The built-in mic and the onscreen keyboard, macros makes it easy to operate all modes, voice/digital or CW without a key, mic or an extra computer in the field.

The built-in logger eliminates the need to carry the logbook too.

The sBitx project is committed to providing eye-free usage for the sbitx. As a first step, this release features a command line interface that provides all the features of the GUI.

Features

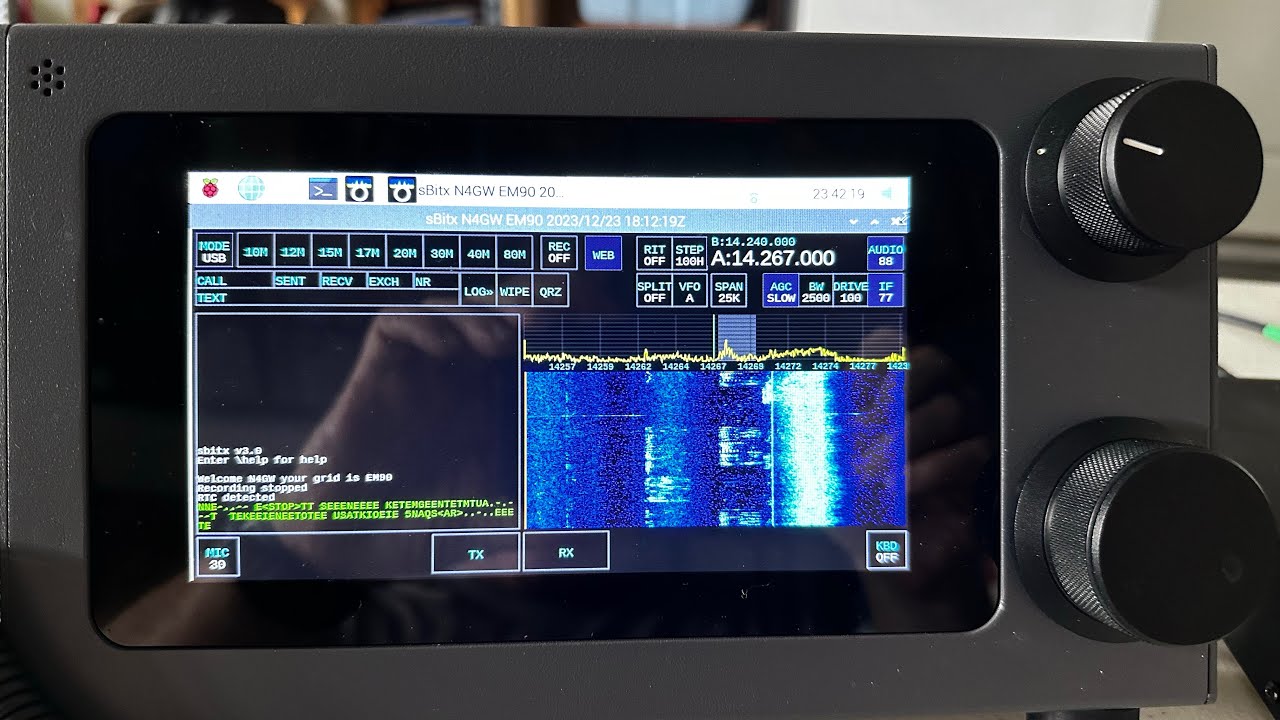

• 7 inch touch screen: The largest display shipped with a transceiver
• Integrated Modes: CW, logging is integrated into the radio, no setup and wires to deal with.
• Noiseless performance from it’s all electronic T/R switching, fanless power amplifier and electronically selected filters. Temperature Compensated Crystal Oscillator to provide rock solid, low phase noise operation.
• Band-stacking VFOs with 4 memories on each of the 8 bands. Audio Tracking Filter variable from 50 Hz to 4000 Hz.
• High performance electronics with a passive-FET front end, 8 crystals’ filter and a low phase noise, temperature compensated crystal oscillator.
• Editable macros that make it a breeze to work DX or compete in contests.
• High Accuracy Real Time Clock for accurate logging and FT8 timings
• Web-based Remote Operation from your PC/tablet/phone. Works without any downloads, just use your browser.
• Add a second screen with the HDMI port
