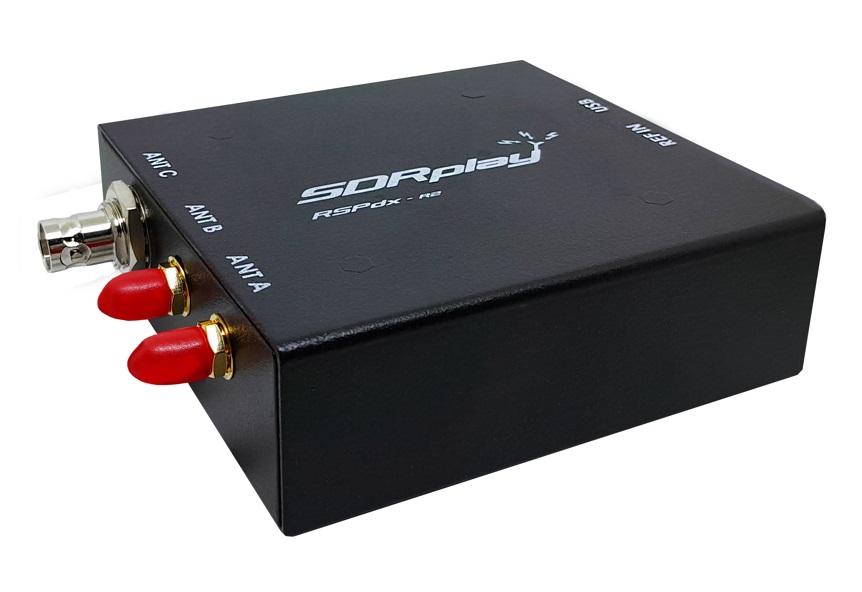

The SDRplay RSPdx-R2 is an enhanced version of the popular RSPdx and is a wideband full-featured 14-bit SDR which covers the entire RF spectrum from 1kHz to 2GHz.

Combined with the power of readily available SDR receiver software (including ‘SDRuno’ for Windows and Multi-Platform ‘SDRconnect’ supplied by SDRplay) you can monitor up to 10MHz spectrum at a time.

The RSPdx provides three software selectable antenna inputs, and an external clock input. All it needs is a computer and an antenna to provide excellent communications receiver functionality.

Features

• Covers all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
• Receive, monitor and record up to 10MHz of spectrum at a time
• Significantly improved noise performance below 1MHz (i.e. for some MF, LF and below).
• Improved dynamic range below 2MHz both in tuner mode and HDR mode.
• HDR mode below 2MHz giving overall dynamic range and selectivity advantages
• Software selectable choice of 3 antenna ports
• External clock input for synchronisation purposes, or connection to GPS reference clock for extra frequency accuracy
• Excellent dynamic range for challenging reception conditions
• Free use of Windows-based SDRuno software (check website for versions supported)
• Free use of SDRconnect SDR and server software for Windows, MacOS and Linux (Check website for versions supported)
• Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi 4/5
• Strong and growing software support network
• Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability)
• Documented API provided to allow demodulator or application development on multiple platforms
• An integrated frequency scanner (for frequency ranges and stored memory panel lists)
• Weight: 315g
• Dimensions: 113 x 94 x 35mm
• Antenna A port: 1kHz -2GHz, 50 ohms Input impedance, SMA Female connector
• Antenna B port: 1KHz -2GHz, 50 ohms Input impedance, SMA Female connector, Selectable 4.7v DC out (see Bias T)
• Antenna C Port: 1kHz -2GHz, 50 ohms Input impedance, BNC Female connector
• Bias T: Software selectable 4.7v @ 100mA
