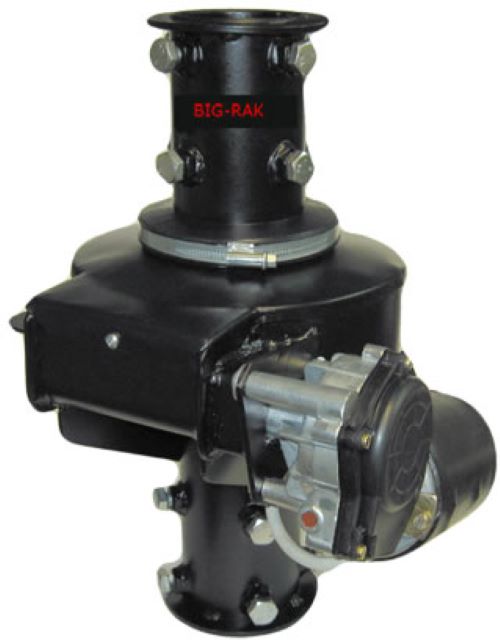

SPID-BIG-RAK Azimuth Rotator

Medium to heavy duty antenna positioner with advanced digital features and at an outstanding price.

Rotating torque is in the 2,800 to over 4850 lb-inch range, with between 12 and 24 volts to the motor.

Positioner (Rotator)

• Low voltage - high torque DC gear head motor
• Rotating torque/speed: 1,400 lb-in at 12v (120 sec) to 3240 lb-in at 24v (60 sec)
• Quiet and powerful self-braking action with double worm drive reduction
• Houses inexpensive 4 conductor cable
• Sealed reed switch sensor technology for reliable all weather readout
• 1 degree positioning accuracy - tight tolerances for minimal play
• Designed for simple mounting to ~2" pipe mast - both ends
• Coax can pass through centre of rotator - prevents cable damage

Controller

• Manual, Automatic, Scanning, and Programmable mode
• Digital readout with 1 degree resolution
• Large easy to read soft green LED display
• Computer interface via included serial cable, including Hygain, Yaesu and Orion
• emulation modes
• Low voltage DC operation from any 12 volt source (typically 2-5 amps)
• Can be zeroed at any position to allow for installation inaccuracy or antenna mount slippage
• Generous overtravel (+/-180) with electronic limit
• Optional mouse control with 6 user programmable presets
