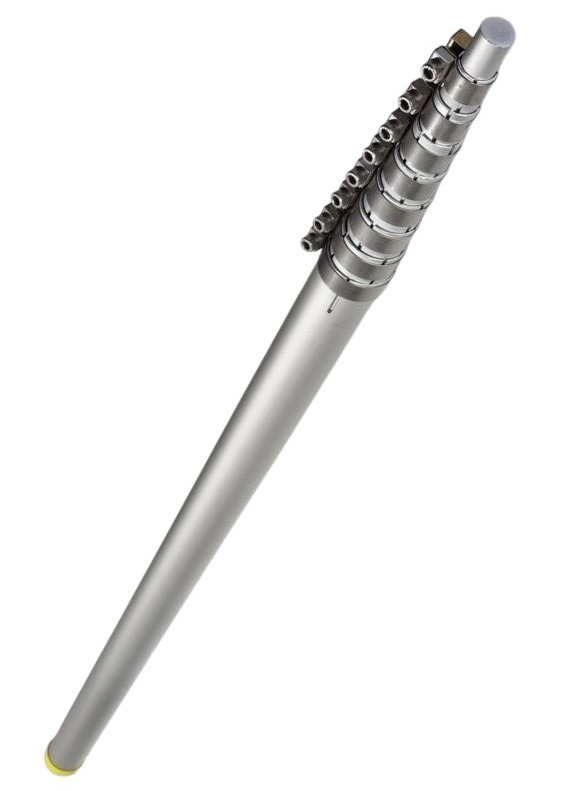

Spidermast 10m HD

German quality engineering, with anodised sections and stainless clamps, this is a really well made mast, perfect for DXpeditions and home use. Not to be confused with inferior masts offered in the Amateur radio market by others.

The individual sections are interlocked with strong high quality stainless steel clamps with allen screws. An allen wrench is supplied with the mast and no further tools are necessary. The mast should be guyed at one or two levels.

This mast was developed especially for our Heavy Duty Spiderbeams. It can be rotated by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the antenna.

Specification

• Aluminium HD telescopic push-up mast 10m (33ft)
• Fully extracted length: (height) 10m (33ft)
• Transportation length: 1.70m (5ft 7")
• Weight: 10.5kg (23 lbs)
• Bottom diameter: 70mm (2 3/4")
• Top diameter: 40mm (1 1/2")
• Wall thickness: 2mm (1/12")
• Number of segments:  7
• Pole material: high quality anodized aluminium
• Strong interlock clamps made from stainless steel

Maximum useable heights

• Portable Spiderbeam - extend mast to full height of 10m (33ft)
• Heavy Duty Spiderbeam - extend mast to full height of 10m (33ft)
• Robust mast for permanent installation
