Discontinued SPIDERBEAM 14.5m ALUMINIUM TELESCOPIC MAST HD VERSION
- SKU
- 97-576
Description / Discontinued SPIDERBEAM 14.5m ALUMINIUM TELESCOPIC MAST HD VERSION

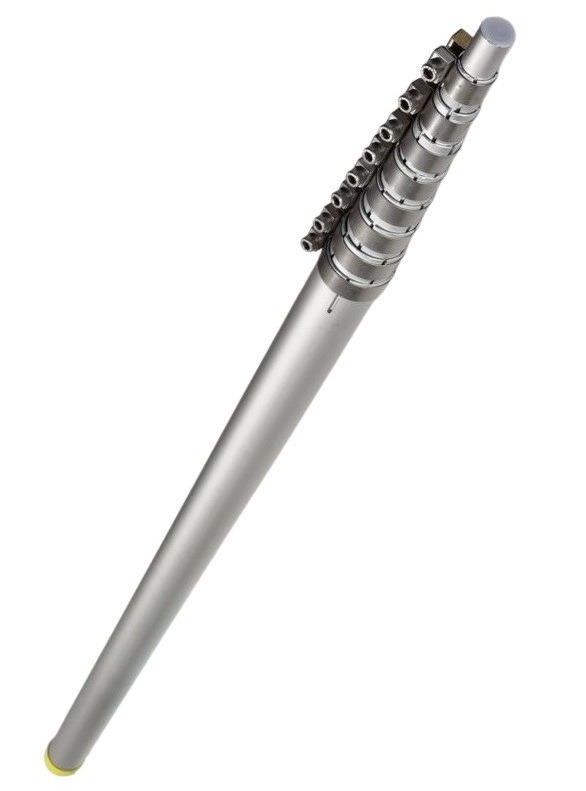

Spidermast 14.5m HEAVY DUTY telescopic mast
German quality engineering, lightweight with anodised sections and stainless clamps, this is a really well made mast, perfect for DXpeditions and home use. Not to be confused with inferior masts offered in the Amateur radio market by others.
The individual sections are interlocked with strong high quality stainless steel clamps with allen screws. An allen wrench is supplied with the mast and no further tools are necessary. The mast should be guyed at two or three levels.
This mast was developed especially for permanent installation of our Heavy Duty Spiderbeams. The additional height will strongly improve the performance especially on 20 and 17m due to lower take off angle.
The mast can be rotated by hand, or a rotator (e.g. KR-450 or KR-650) can be placed at the bottom and turn the whole mast including the antenna.
Specificaton
- Aluminium HD telescopic push-up mast 14.8m (48ft)
- Fully extracted length (height) 14.5m (47ft)
- Transportation length 2m (6ft 7")
- Weight - 17kg (39lbs)
- Bottom diameter - 80mm (3 1/8")
- Top diameter - 40mm (1 1/2")
- Wall thickness - 2mm (1/12")
- Number of segments - 9
- Pole material - high quality anodized aluminium/strong interlock clamps made from stainless steel
Maximum useable heights
- portable Spiderbeam - extend mast to full height of 14.8m (48ft)
- Heavy Duty Spiderbeam - extend mast to full height of 14.8m (48ft)
- Robust mast for permanent installation - mount your HD Spiderbeam at a serious height of 14.8m
