Serious 15 metre high mast for Field day and DXpeditions!

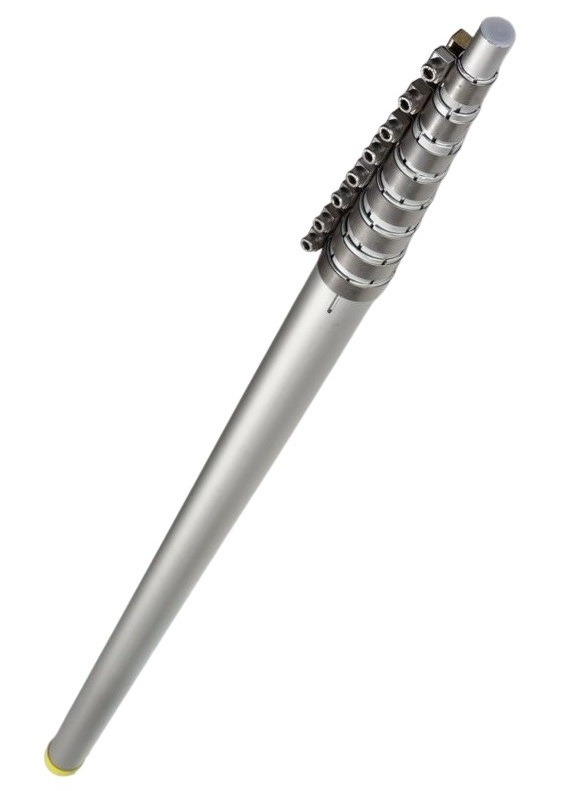

A beautifully engineered mast with individual sections that are interlocked with strong high quality stainless steel clamps with Allen screws. An Allen wrench is supplied with the mast and no further tools are necessary.

The mast should be guyed at two or three levels for safety and optimum load carrying capacity.

This mast was developed for serious portable operations and DXpeditions. It is still easy to transport by car and can be taken aboard normal sized airplanes. It will carry a portable Spiderbeam yagi at its full height of 15m. The extra height will be noticeable on 20 and 17m, giving you a lower take-off angle.

The mast can be rotated by hand, or a rotator can be placed at the bottom and turn the whole mast.

SPECIFICATION

• Height: 15m (49ft)
• Transportation length: 2m (6ft 7")
• Weight: 14kg (31lbs)
• Bottom diameter: 70mm (2 3/4")
• Top diameter: 30mm (1 1/6")
• Wall thickness: 2mm (1/12")
• Number of segments: 9
• Pole material: high quality anodized aluminiumstrong interlock clamps made from stainless steel
