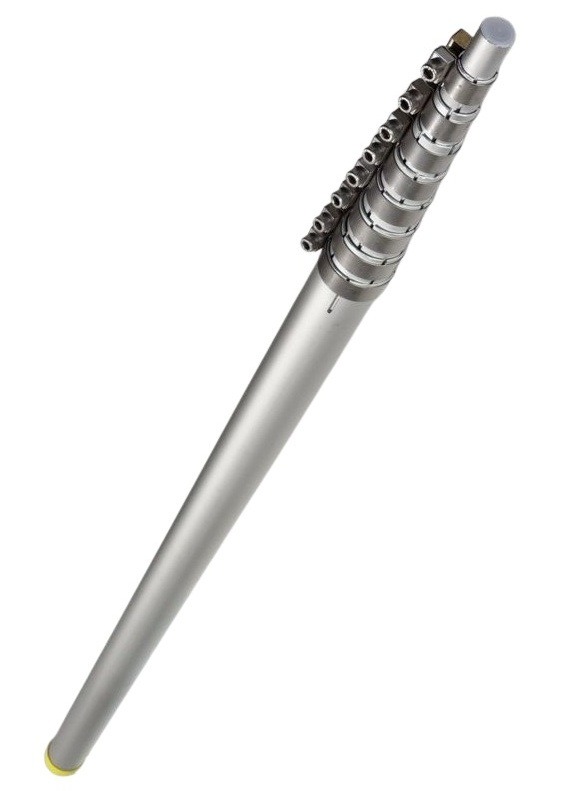

Heavy Duty 18m mast for Field Day and DXpeditions

This mast is ideal for carrying all sorts of portable antennas. It will also carry a Heavy Duty beam but at a reduced height of 14m (46ft).

The individual sections are interlocked with strong high quality stainless steel clamps with Allen screws. An Allen wrench is supplied with the mast and no further tools are necessary. The mast should be guyed at three levels.

This mast was developed for serious portable operations and DXpeditions. It is still easy to transport by car and can be taken aboard normal sized airplanes. It will also serve well for building permanent 80m vertical antennas etc

Specification

• Fully extracted length (height): 18m (60ft)
• Transportation length: 2m (6ft 7")
• Weight: 18kg (40lbs)
• Bottom diameter: 80mm (3 1/8")
• Top diameter: 30mm (1 1/6")
• Wall thickness: 2mm (1/12")
• Number of segments: 11
• Pole material: high quality anodized aluminium strong interlock clamps made from stainless steel

Maximum Useable Heights

• Portable Spiderbeam: Extend mast to full height of 18m (60ft)
• Heavy Duty Spiderbeam: Extend mast to maximum height of 14m (46ft)
