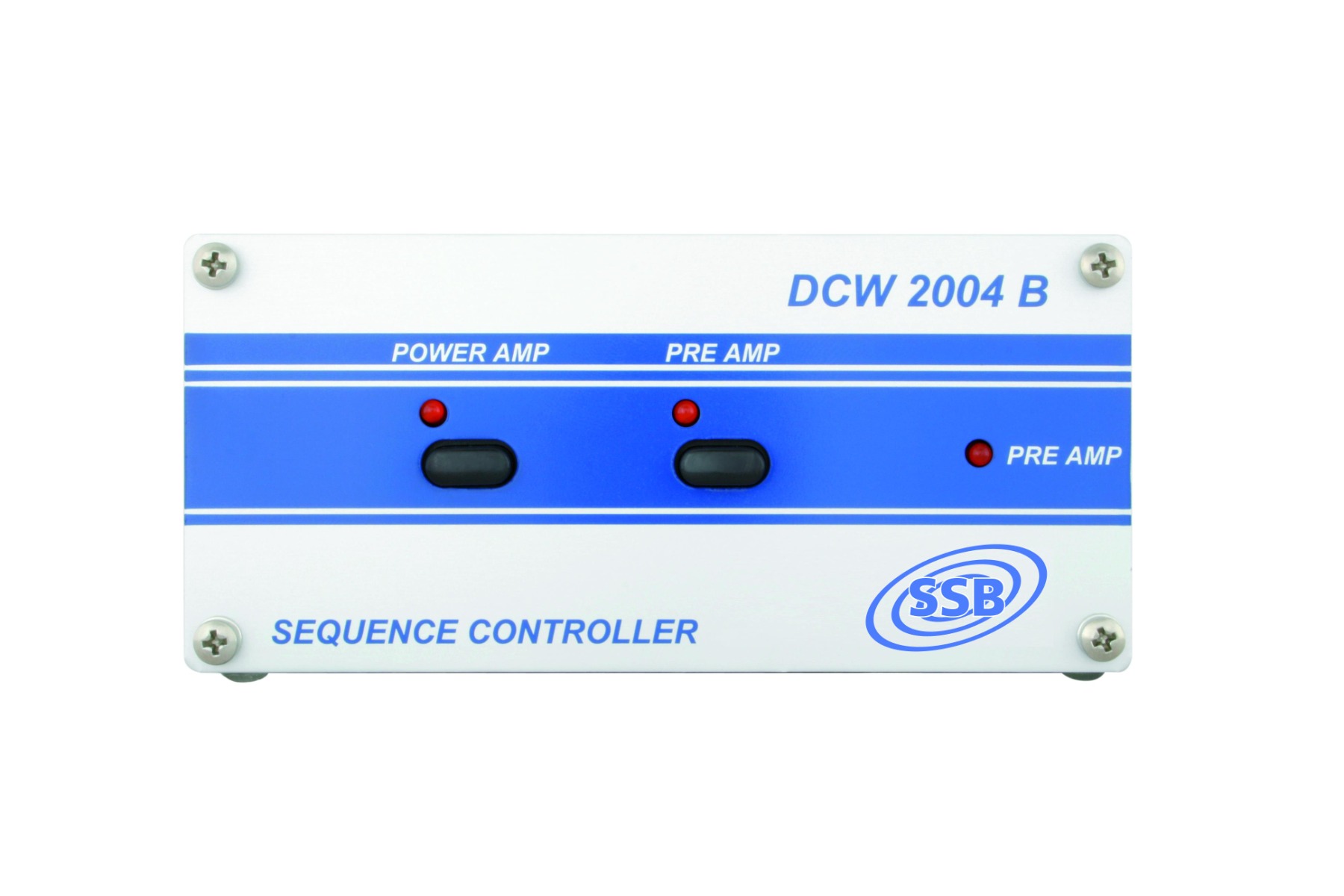

The SSB DCW 2004 B, allows safe control ( with Bias-T incl. ) for the SSB range of masthead pre-amplifiers via the coaxial cable as well as for delayed switching of HF-linear amplifiers.

The sequential operation of the DCW 2004 B avoids reliably damage to the pre-amplifier that may be caused by HF-spikes during switching. It offers 3 switching outputs in total, which have ascending delay times. So not only linear amplifiers but other devices, like transverters, can be switched on with defined times.

The DCW 2004 B is designed for the amplifiers MHP - R and SP series. The PTT switching input of the DCW 2004 B accepts a circuit against ground or against + 5 .. 12 V. The pre-amplifier and a linear amplifier (if used) can be switched on or off as required.

The HF-section of the DCW-2004 B offers a very low insertion loss and a high shielding Factor

Specification

• TX Power: 6 m - 1,0kW CW- 2,0kW PEP /2 m - 1,0kW CW- 2,0kW PEP / 70cm - 0,6kW CW- 1,2kW PEP / 23cm = 150W / 13cm = 100W
• Insertion loss: 0,1 dB 0,2 dB
• Connectors: N-Socket
• Pre-amplifier voltage (remote feeding): 0,5 A max loadable PTT switching output
• Power amplifier: 30 V at 0,5 A max.
• Relay switching outputs : 30 V at 0,5 A max.
• -PTT Input switches at and +PTT Input switches at: > 5 V
• Operating voltage: 12-14 V
• Recommended voltage: 13,8 V
• Dimensions: 40 x 120 x 654 mm
• Weight: 600 g
