Discontinued Vectronics DL-2500N - Dry DL, 2500W, 0-60 Mhz, N

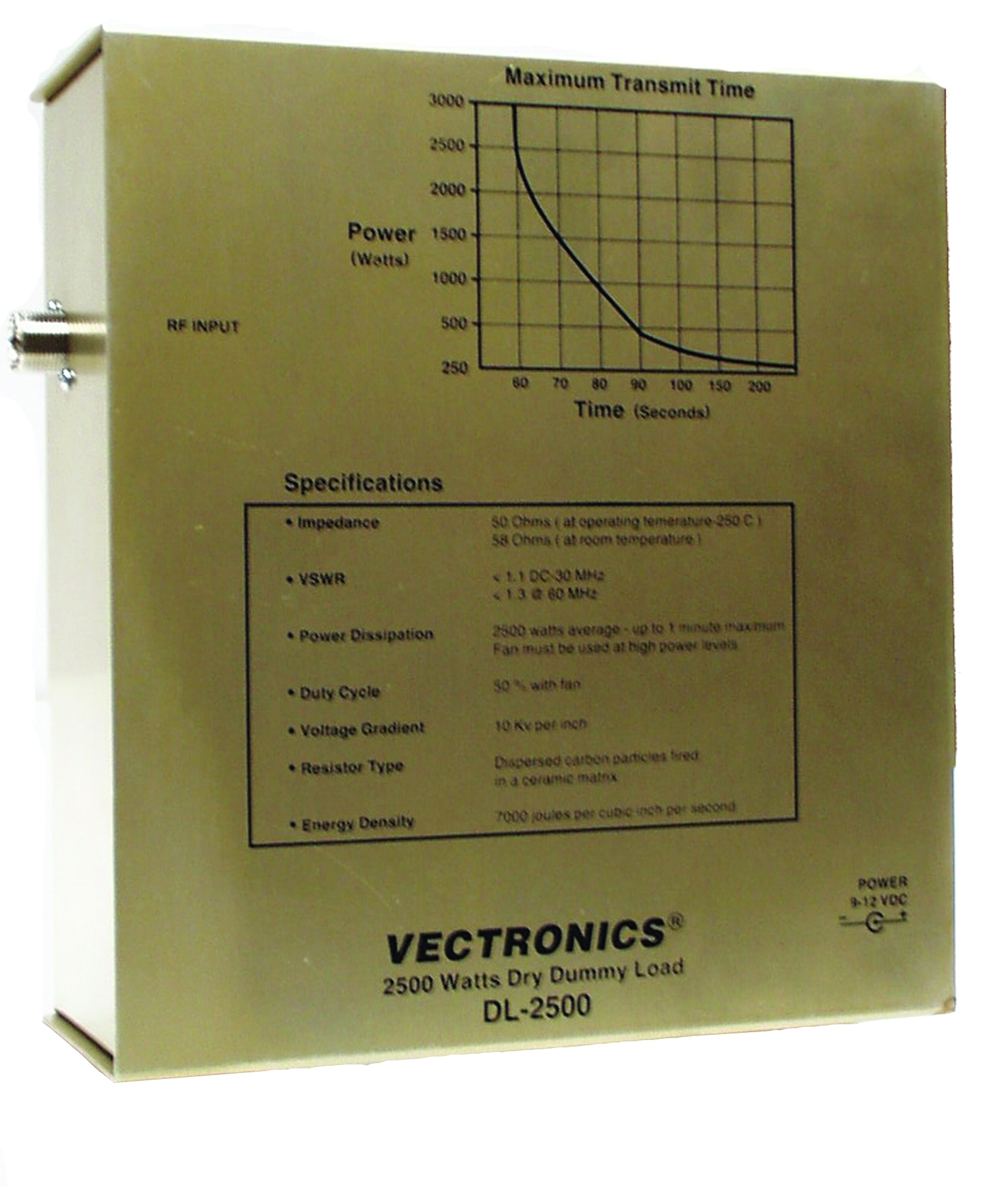

Fan cooled DL-2500 Dummy Load simulates an accurate 50 Ohm antenna up to 60 MHz, enabling you to test your transmitter without radiating a signal on the air. 115 VAC to 12 VDC adaptor is included.
- SKU
- 54-906
£292.00
Description / Discontinued Vectronics DL-2500N - Dry DL, 2500W, 0-60 Mhz, N
Fan cooled DL-2500 Dummy Load simulates an accurate 50 Ohm antenna up to 60 MHz, enabling you to test your transmitter without radiating a signal on the air. 115 VAC to 12 VDC adaptor is included.
Key Features:
- DC to 60 MHz.
- Handles short-term RF power up to 2500 Watts.
- VSWR of less than 1.3:1 at 30 MHz.
- Power dissipation: 2500 Watts average up to one minute maximum.
- Fan must be used at high power levels.
- Duty Cycle: 10% with fan.
- Voltage Gradient: 10 kV per inch.
- Resistor type: Dispersed carbon particles fired in a ceramic matrix.
- Energy Density: 7000 joules/inch/second.
-
N Connector
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109242051 |
| Manufacturer | Vectronics |
| MPN | DL-2500N |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
