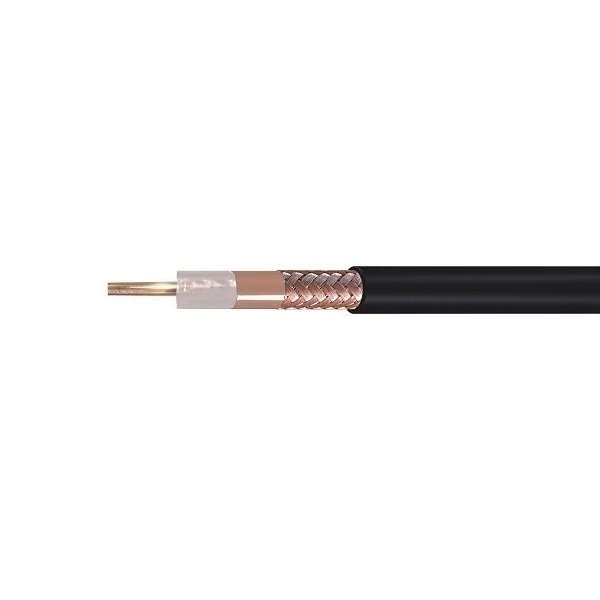

Westflex 103 (50 OHM) Coax Cable - Per Metre
Very high quality coax for use where losses are important.
In stock
- SKU
- 16-0091
£2.50
Description / Westflex 103 (50 OHM) Coax Cable - Per Metre
Very high quality coax for use where losses are important. Centre conductor diameter is slightly larger than conventional RG213 so special large entry plugs are required for best fit
Key Features/Specifications:
- Size: 9mm
- Impedance: 50Ohm
- Inner conductor: 2.6mm semi-air spaced
- Outer conductor: 9mm tape and braid 100% copper covered
- Sheath: PVC velocity ratio: 0.85
- Temperature range: -40/+80oC
-
Loss: 10 MHz 1.5 dB per 100m
-
Loss: 30 MHz 2.4 dB per 100m
-
Loss:50 MHz 3.0dB per 100m
-
Loss: 100 MHz 4.6 dB per 100m
-
Loss: 200 MHz 6.4 dB per 100m
-
Loss: 400MHz 10.00 dB per 100m
-
Loss: 1000MHz 16.8 dB per 100m
-
Colour black
More Information
| Allow Backorder in Clerk.io | Yes |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5056109208835 |
| Manufacturer | Westflex |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
Customer Reviews
Price
4
Quality
5
Value
4
Westflex 103
Review by
Stan
Bought a few meters of 103 to make the matching stub for a home built 5/8 vertical.a copy of a very well known Italian antenna. This coax is very good quality. Dense outer braid and a very thick centre . It's semi air spaced. So care is required when soldering the inner. Very pleases with the result. Antenna works well.
Write Your Own Review
