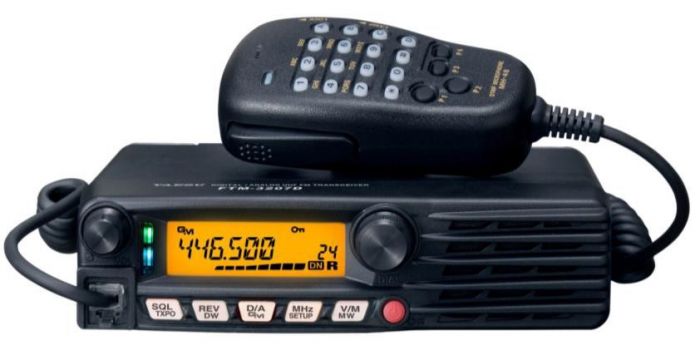

Ever since the introduction of the popular FTM-3200DR, radio amateurs have been asking for a UHF version. The new FTM-3207DR shares the same core feature set as the FTM-3200DR and is identical in appearance, while now offering UHF operation on the 430 MHz band. The new FTM-3207DR provides high output power, with incremental power levels from 5 to 55 Watts. Thanks to a heavyduty heat sink that includes our exclusive FACC (Funnel Air-Convention Conductor) Wind Tunnel, the design of this new mobile ensures stable and reliable performance for long-lasting communications. The Front-Facing Speaker delivers 3 Watts of abundant and crystal clear audio; engineered for stress-free and enjoyable communications - even in noisy environments.

As with other YAESU C4FM transceivers, the FTM-3207DR incorporates the Automatic Mode Select (AMS) function -allowing all operators to enjoy seamless communications between conventional FM analog and C4FM digital users. Naturally, the enhanced Digital Group Monitor (GM) function and DG-ID/DP-ID operation are also available. Utilizing the DG-ID/DP-ID, operators can configure the radio for group communications in the UHF band according to their operational preferences and requirements.

Other useful features included as standard are: a bright multi-colored LED Mode/Status Indicator; 220 memory channels with alpha-numeric labels; DSQ (Digital Squelch Code) signaling; CTCSS/DCS encode/decode with split Tone and DCS encode-only capability; and EPCS (Enhanced Paging & Code Squelch Operation).

Key Features/Specifications:

• Genuine 55 W Output Power with FACC: Funnel Air-Convection Conductor (Wind Tunnel)
• Advanced Digital C4FM operation
• System Fusion Compatible
• AMS (Automatic Mode Select) function automatically recognizes the signal as C4FM digital or conventional FM
• Sophisticated Digital-Group-ID Operation
• Loud 3 Watts of Audio Output Power with the Front Speaker for noisy environments
• Bright Multi-colored LED Mode-Indicator for easy operation
• Four Programmable keys on the microphone allow one-touch access to your favorite command function
• 221 Memory Channels with Alpha-numeric tags (maximum 8 characters)
• DSQ (Digital Squelch Code) Signaling Feature
• CTCSS and DCS Encode/Decode
• Versatile Scanning Capabilities: VFO Scan / Memory Channel Scan / Programmable Memory Scan (PMS) /Priority channel Scan
• Memory-Only Mode
• Time Out Timer (TOT)
• Automatic Power OFF (APO)
• Busy Channel Lock-Out (BCLO)
• Frequency Ranges: RX 420 - 470 MHz (specified performance, amateur band only)

TX 430 - 450 MHz (amateur band only)

• Circuit Type: Double-Conversion Superheterodyne
• Modulation Type: F1D, F2D, F3E, F7W
• RF Power Output: 55 W/25 W/5 W
• Memory Channels: 221
• Case Size(W x H x D): 6.1" x 1.7" x 6.1" (154 x 43 x 155 mm) w/o knobs
• Weight (Approx.): 2.86 lbs (1.3 kg)
• 3 year warranty
