Please Note does not include DTMF Mic

70MHz version of this fully featured, classic little FM transceiver with plenty of power Max (50w) available on the popular and friendly 4m (70MHz) band.

Features:

Output Power:35/25W/10W.

CTCSS/DCS/DTMF/2Tone/5Tone decode and encode.

Four different tone-pulse frequencies.

Compander to reduce noise, Theft alarm.

ANI function (DTMF/ANI, 5-Tone/ANI)/PTT ID.

QHM-03 multifunctional microphone with DTMF.

Technical Specifications:

Frequency Range: VHF: 66-88MHz
Number of Channels: 200
Channel Spacing: 25K (Wide Band) | 20K (Middle Band) | 12.5K (Narrow Band)
Phase-locked Step: 5KHz, 6.25KHz,8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
Operating Voltage: 13.8V DC ±15%
Squelch: Carrier/CTCSS/DCS/5 Tone /2 Tone/DTMF
Frequency Stability: ±2.5ppm
Operating Temperature: -20℃~+60℃
Dimensions (W x H x D): 145mm x 47mm x 190mm
Weight: 1.2Kg approx.

Transmitter Specifications:

Sensitivity (12dB SINDA): Wideband: ≤0.25μV | Narrowband: ≤0.35μV
Adjacent Channel Selectivity: Wide band: ≥70dB | Narrowband: ≥60dB
Intermodulation: Wide band: ≥65dB | Narrowband: ≥60dB
Spurious Rejection: Wide band: ≥70dB | Narrowband: ≥70dB
Audio Response: Wide band: +1~-3dB(0.3~3KHz) | Narrowband: +1~-3dB(0.3~2.55KHz)
Hum ＆ Noise: Wide band: ≥45dB | Narrowband: ≥40dB
Audio Distortion: Wide band: ≤5% | Narrowband: N/A
Audio Power Output: Wide band: >2W@10% | Narrowband: N/A

Allow Backorder in Clerk.io	No
Product Condition	B-Grade
Bar Code/EAN	80-322
Manufacturer	Anytone
Frequency Band	Amateur Bands
Item returned for technician testing period	14 days
Repair period	90 days
Refund period	14 days
Exchange period	14 days

429 Too Many Requests

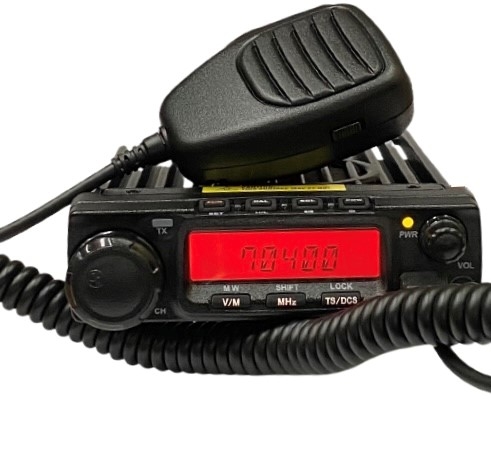

Description / SOLD! B Grade Anytone AT-588 4M 66-88MHz Mobile Transceiver
