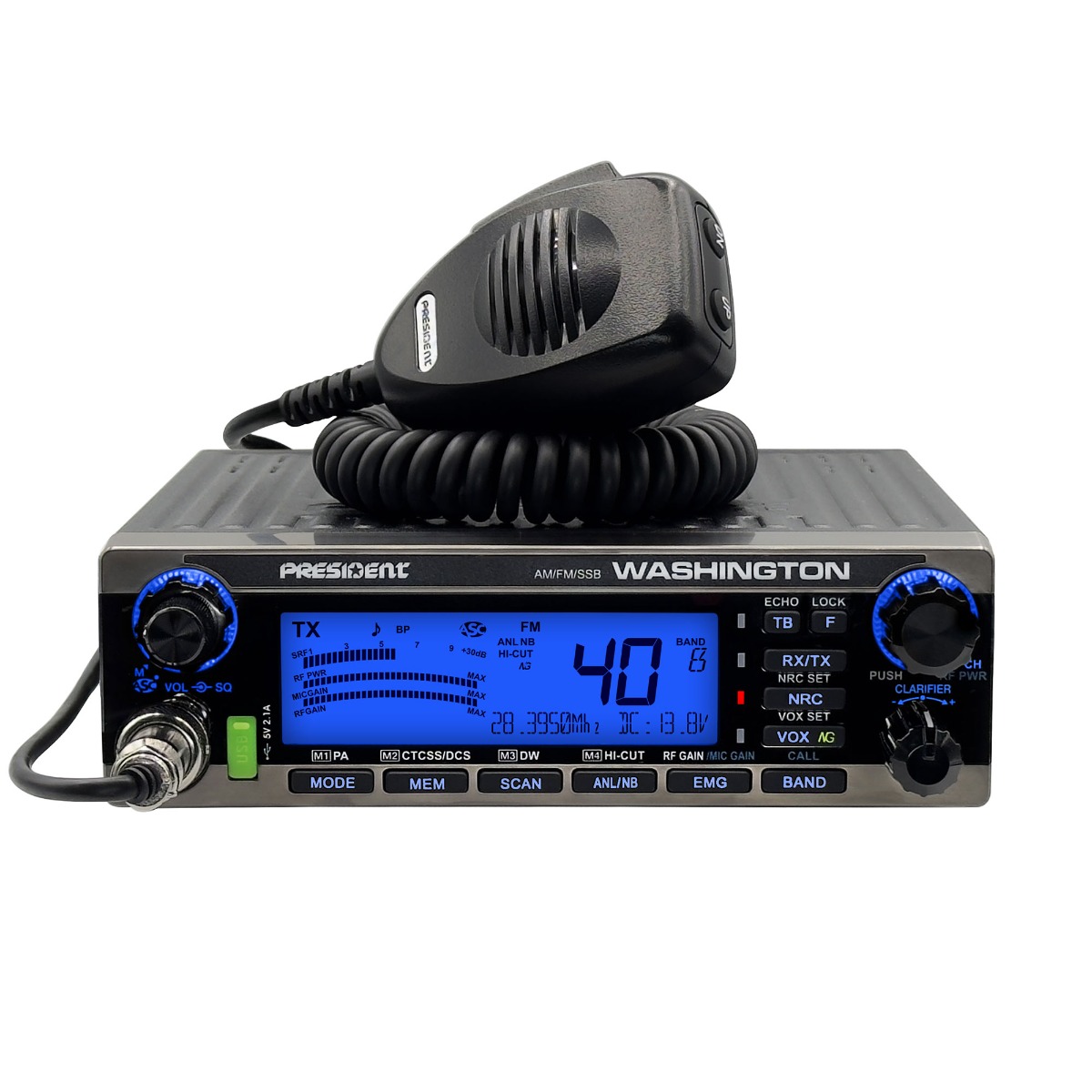

SOLD! B Grade President Washington 10m & 12m 80W Mobile Transceiver
- SKU
- 80-953
Description / SOLD! B Grade President Washington 10m & 12m 80W Mobile Transceiver
B - Grade (All Accessories included)
President has always had a reputation for both quality and performance, and the new range continue this tradition.
Prepare to be blown away by the power of the President Washington 10m & 12m 80W Transceiver! This mobile rig packs a massive 80 watts of output for unbeatable transmission range on both the 10 and 12 metre bands. Whether you're cruising across town or traversing the countryside, the President Washington ensures you can always reach your fellow hams with incredible clarity. Treat yourself to a top-tier transceiver from a trusted brand. Upgrade your mobile setup today with the raw power of the President Washington!
Accessories supplied: 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
specification
- Frequncy ranges: 24.890 - 24.990 MHz and 28.000 - 29.700 MHz
- Moicophone plug: Front 6 pins
- Compatible microphne type: Electret, Dymanic
- Power supply: Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC)
- Antenna impedance: 50 ohms
- Antenna connector: SO-239
- Dimensions: W-170 x H-52 x D-250 mm
- Weight: 1.4 Kg
- Multiconfiguration: EU / U / D / PL / IN
- Channel preselection: 2, channel 9 & 19 , emergency channel (EMG) programmable
- Modulation modes: AM/ FM / USB / LSB
- CTCSS: 38 tones
- DCS: 104 codes
Transmission
- Frequency allowance: ± 200 Hz
- Carrier power: 70 W PEP (AM/USB/LSB) / 50 W (FM)
- Power limitation: 4/10W
- APM: Yes
- Transmission interference: less than 4 nW (-54 dBm)
- Audio response: 300 Hz to 3 kHz
- Emitted power in the adj. channel: Less than 20 μW
- Microphone sensitivity: 3 mV
- Drain: 6 A (with modulation)
- Modulated signal distortion: 2%
Reception
- Max. sensitivity at 20 dB sinad: 0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW)
- Frequency response: 300 Hz to 3 kHz
- Adjacent channel selectivity: 60 dB
- Maximum audio power: 3 W
- Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
- Frequency image rejection rate: 60 dB
- Intermediate frequency rej. rate: 70 dB
- Drain: 400 mA nominal / 600 mA max.
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | B-Grade |
| Bar Code/EAN | 50561092869561 |
| Manufacturer | President |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
