Introducing our top-of-the-line coax cable from Moonraker, designed to meet the rigorous demands of military and professional applications. This best-selling military spec coax cable delivers exceptional performance and durability, making it the go-to choice for critical communication systems.

Trust Moonraker's best-selling coax cable to provide reliable and high-quality signal transmission in the most demanding situations. Whether you're working on a military project or a professional installation, this military spec coax cable is engineered to exceed your expectations.

A screened RF cable having a stranded core 17/0.19mm tinned copper conductor with a solid polyethylene insulator and a braided copper screen. Sheathed overall in black PVC.

Key Features/Specifications:

• Size: 5mm standard
• Impedance: 50 Ohms
• Core: Stranded
• Braid: 69% 80 X 0.12
• Loss: per 10M @ 100MHz :2.0dBd
• Colour: black

Moonraker Coax Cable Solutions (50ohm):

• RG-174 Military Spec - 2.8mm coax cable that has enhanced materials and undergone Rigorous testing for extreme conditions.
• Ideal for very short runs
• Can be used for making Baluns
• Portable operations, can be used to go through windows
• RG-58 Military Spec / Standard - 5mm coaxial cable commonly used for general-purpose RF applications, while the military spec is designed to meet military standards.
• Good for short runs
• Can be used for mobile mounts
• Mini 8 Military Spec - 7mm high-performance, rugged version of the standard Mini 8 cable, built to withstand harsh environments providing reliable, low-loss signal transmission for demanding applications.
• Good for mid size VHF runs
• lower loss than RG-58
• Good choice for HF application
• RG-213 Military Spec - 9mm cable that has lower attenuation (signal loss) compared to RG-58, especially at higher frequencies. This makes it better for longer cable runs or high-frequency applications.
• Can be used for larger runs
• good for HF/VHF to about 20m/30m
• Stranded inside a conductor
• F-Zero Military Spec - Our professional 10mm diameter low loss cable that has been specifically formulated and designed to get as close to 'Zero Loss' as possible.
• Solid inner - harder to bend
• Low loss on UHF
• Higher power handling

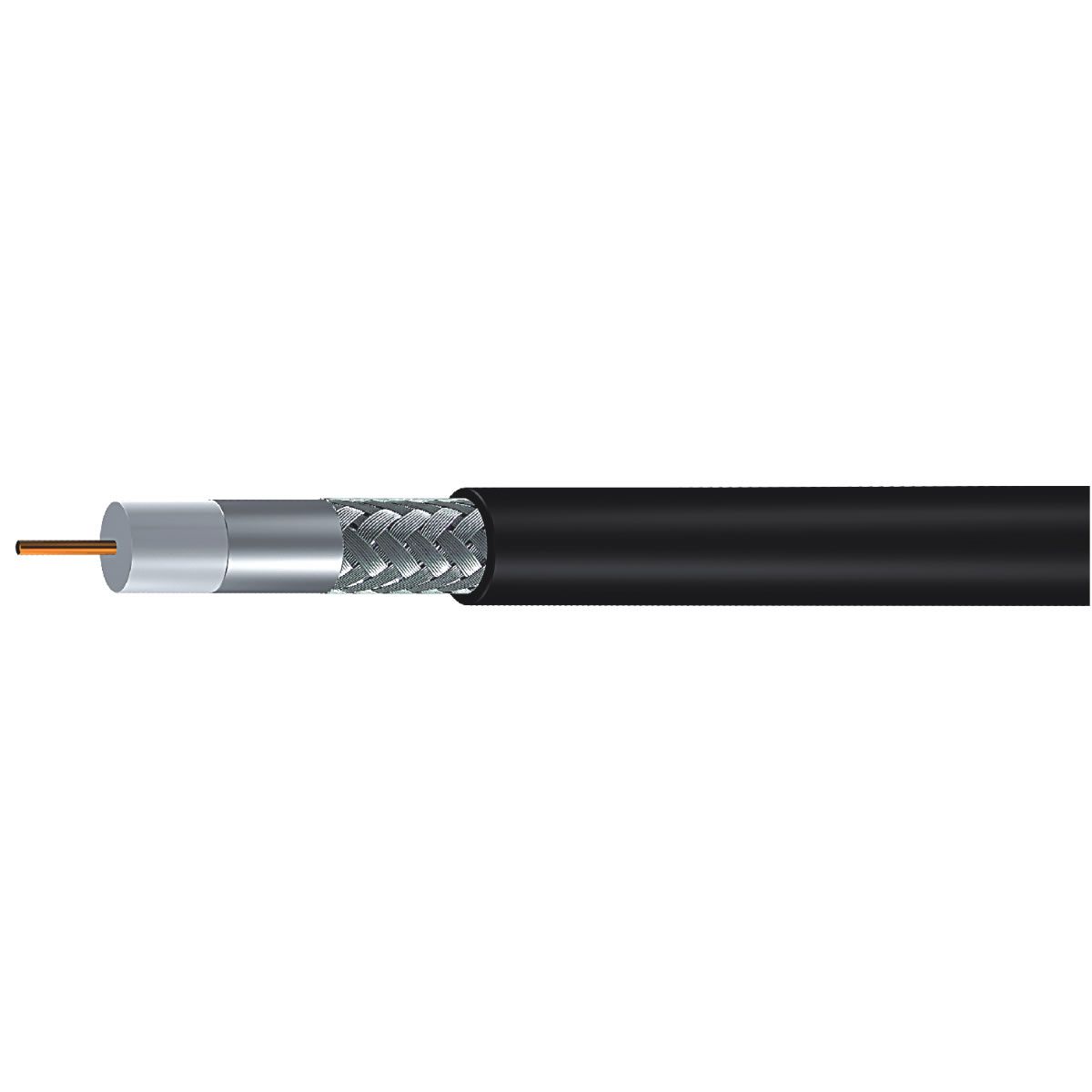

• FZ-400CU - Our professional 10.30mm diameter flexible cable that has been specifically formulated and designed for industrial machinery, electrical installations and automation systems.
• Solid inner conductor
• Low losses
• Higher power handling
• Foam in a Dielectric

	RG-174	RG-58	MINI-8	RG-213	F-Zero	FZ-400CU
Price (£ per meter)	0.50	Mil Spec - 0.60, Standard - 0.45	0.80	1.65	2.0	2.25
Diameter (mm)	2.8	5	7	9.65	10.2	10.29
Losses (per 10m @100MHz)	N/A	Standard - 2.0dBd, Mil Spec - 1.5dBd	1.2dBd	0.7dBd	N/A	4.50dB/100m
