Yaesu FT-5DE - 5W C4FM/FM 144/430MHz Dual Band Digital Transceiver.

The Yaesu FT-5DE is the Swiss Army knife of handheld transceivers. This dual-band marvel lets you eavesdrop on two frequencies at once, no matter the combo – V+U, U+V, V+V, or U+U.

It's like having two radios in one pocket-sized package. Fancy a chat in digital voice (C4FM)? Or prefer the classic FM? This little genius handles both simultaneously. And with its clever automatic modulation detection, it's always one step ahead, switching modes faster than you can say "roger that".

Whether you're a seasoned ham or just starting out, the FT-5DE is your perfect sidekick for all your amateur radio adventures. Grab yours today!

Features

Wireless hands-free operation using the optional Bluetooth® headset (SSM-BT10)
VOX function
Memory Auto Grouping (MAG)
VFO Band Skip Function
Wide-range RX coverage with continuous reception from 0.5MHz–999.99MHz (A Band) and 108MHz–580MHz (B Band)
Built-in high-sensitivity 66 channel GPS receiver
1200/9600bps APRS Data modem

Supplied Accessories

Dual Band Helical Antenna

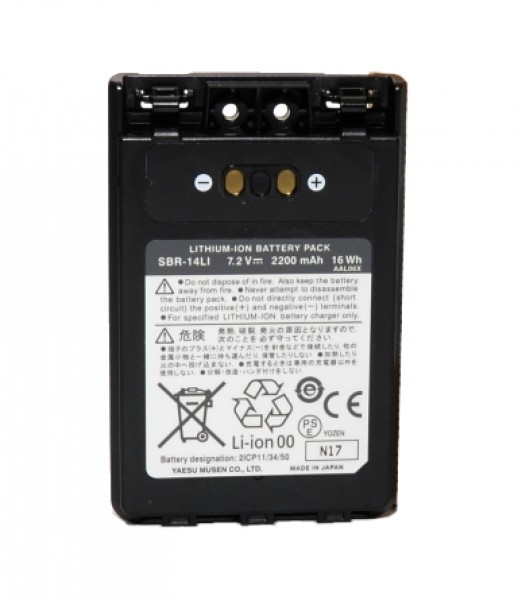

7.2v 2200mAh Li-ion Rechargable Battery Pack (SBR-14LI)
UK 3-Pin Mains Charger
Belt Clip
Operating Manual
USB Cable

Specification

Frequency Ranges - A(Main) Band RX: 0.5 - 1.8MHz (AM Broadcast) 1.8 - 30MHz (SW Band) 30 - 76MHz 76 - 108MHz (FM Broadcast) 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz 222 - 420MHz 420 - 470MHz (430MHz HAM) 470 - 800MHz 800 - 999.995MHz
Frequency Ranges - B(Sub) Band RX: 108 - 137MHz (Air Band) 137 - 174MHz (144MHz HAM) 174 - 222MHz 222 - 420MHz 420 - 470MHz (430MHz HAM) 470 - 580MHz
Frequency Ranges - TX: 144 - 146MHz (C4FM/FM) 430 - 440MHz (C4FM/FM)
Circuit Type: NFM/AM: Double-Conversion Superheterodyne FM/AM Radio: Direct-Conversion Modulation Type: F1D, F2D, F3E, F7W
RF Power Output: 5W /2.5W /1W /0.3W
Size: 62x100x4mm
Weight: 282g

Customer Reviews

Price

Quality

Value

Full featured

Review by Dan

Good value and service from Moonraker.

The FT5D is a nice size, fits my hand well. Plenty of memories and good general receive coverage.

A little disappointed with not being able to select AM on UHF, and there are some very annoying signals spread through the non-amateur bands that come from inside the radio itself. The CPU clock shift feature doesn't help, sadly.

all good

Review by steven p

very nicely made and works very well

A Great Radio

Review by Paul

Other hams have already said what needs to be said about this radio.

Yes, having a repeater database like the ID52 that you could use with GPS is a nice touch, but repeater book is just as easy.

I programmed in the repeaters with a 50 mile radius of my QTH, so when I do go out, I can quickly store those around me into the PMG group and monitor them.

I first bought the FT70D as my entry into Yeasu and loved it. The 5D is a joy, and just as easy to use, despite the lack of keys.

The supplied antenna is ok, but as usual I put my Retevis 771 antenna on, which has a better SWR and works well with the radio's sensitive receiver.

The fast charge base is a must, else you will be waiting ages for it to charge.

I love being able to have two bands on the screen that are both monitored, or you also have PMG to monitor 5, or CAM to monitor groups.

All in all I love this radio, it is built well, is a great price, easy to use, and a joy to hold.

Slightly disappointing due to missing obvious, major feature

Review by M5KVK

This radio has a lot going for it; but it's missing one major, and obvious, feature.

The radio has built-in GPS, and nearly a 1000 memories to fill up with repeaters etc. BUT, the memories cannot store the GPS location of the repeater. Hence, you cannot exploit the GPS to access the nearest repeater to your current location.

This has been standard feature on Icom radios for years. WHY is Yaesu so backward?

Another annoyance is the insistence of using a custom power supply instead of going for a USB-C socket that combines power and data. The consequence is that the battery takes over 8h to fully charge.

Top Notch Radio

Review by Rob

Buy this and you will never be wanting for another 2/70 digital amateur & wide band receive hand held. Yaesu quality as always.

Ft5de

Review by Mick

Fantastic handheld, really pleased with it, so easy to set up and get on the air, got a great deal/price from Moonraker c/w leather case and Bluetooth earpiece

Allow Backorder in Clerk.io	No
Product Condition	New
Bar Code/EAN	5056109263681
Manufacturer	Yaesu
Frequency MHz	430 MHz (70cm), 144 MHz (2m)
Item returned for technician testing period	14 days
Repair period	90 days
Refund period	14 days
Exchange period	14 days

Description / FT5DE - Handheld Transceiver (Plus £70 Cashback direct from Yaesu UK)
