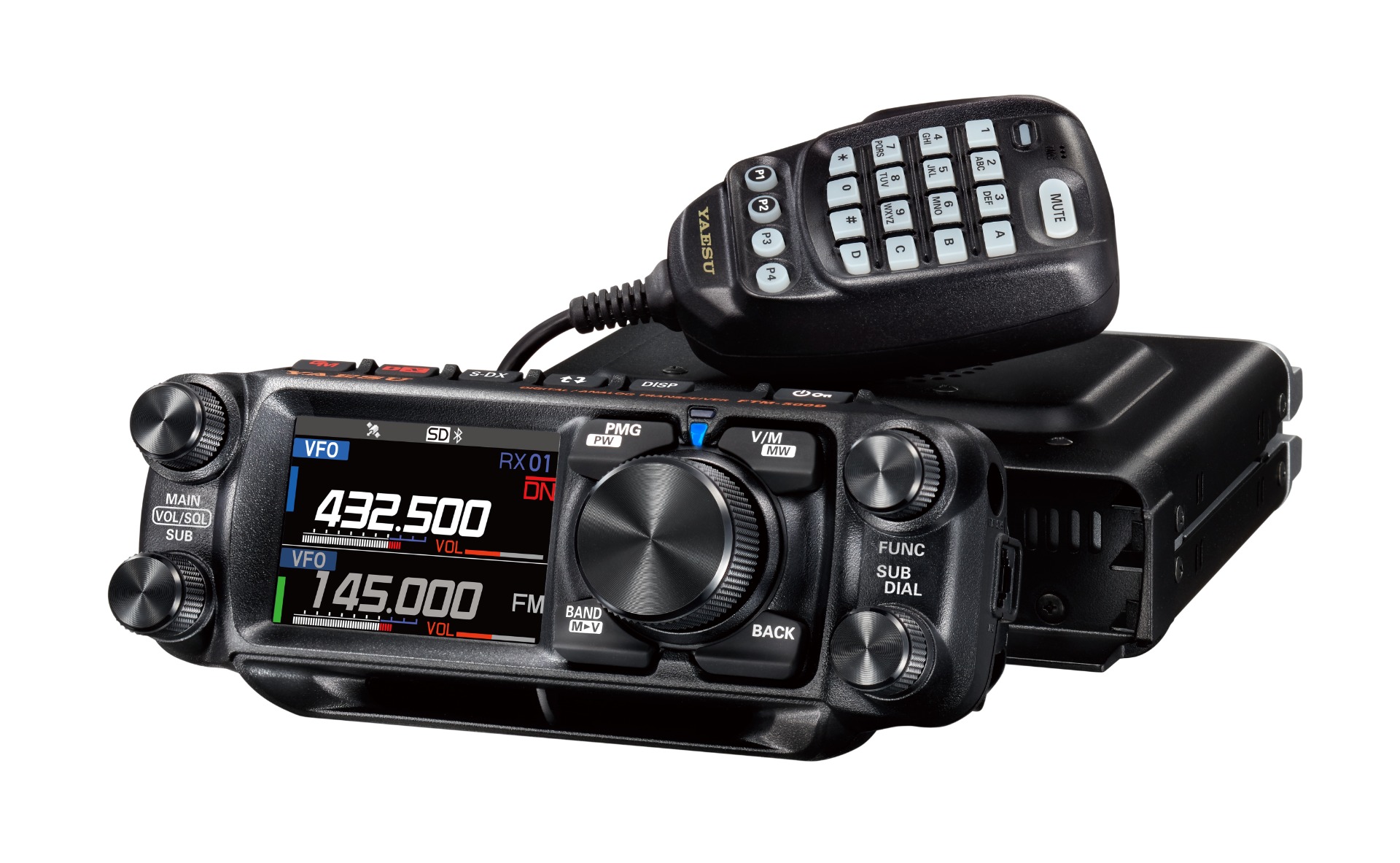

Discontinued YAESU FTM-500DE Mobile Transceiver
The FTM-500DE is a 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceiver.
- SKU
- 10-522
£629.95
£499.00
Description / Discontinued YAESU FTM-500DE Mobile Transceiver
The YAESU FTM-500DE is here to revolutionise your on-the-go communication.
This powerhouse transceiver offers both analogue FM and digital C4FM modes, delivering a whopping 50W transmit power without the need for a separate amplifier.
But that's not all – the FTM-500DE boasts the innovative AESS Audio Enhancement System, ensuring crystal-clear audio even in the noisiest environments. With two strategically placed speakers driven out of phase, you'll never miss a beat. And for those who love to multitask, the integrated Bluetooth interface is a game-changer.
Whether you're a seasoned pro or just starting out, this versatile VHF and UHF mobile radio is your ticket to top-notch performance and unparalleled clarity.
A few remarkable functions are listed below:
- Front Speaker with AESS* Dual Speaker System *(AESS: Acoustic Enhanced Speaker System) Total 9W Clear and Powerful High-fidelity Audio, delivered by the Front Panel 6W and the Main Unit Internal 3W speakers.
- E2O(Easy to Operate)-IV Innovative, Smart Operating System with >TOUCH&GO/SEARCH&GO / PMG** Functions. **(PMG: Primary Memory Group Monitor)
Other Key Features
- 144MHz, 430MHz C4FM Digital / FM / AM (Air Band Receive)
- True Dual Band Operation, C4FM/C4FM Digital D-D Dual Receive
- Advanced C4FM Digital Mode with AMS (Automatic Mode Select), DG-ID feature and Smart Navigation
- 2.4-inch High-Resolution Full-Color Touch-panel Display and Demountable Front Panel Controller
- Swing-Head adaptable Front Panel improves display visibility
- Single-Touch Spectrum Scope function
- High speed Band Scope function
- Built-in 66ch High precision GPS receiver and External GPS device connectivity
- Wireless Operation Capability with the Bluetooth® Headset - Optional Swing-head Kit (SJMK-500) allows the Flexible angle adjustment of the Front Control Panel
- Customized Function List (CFL) Display allows checking and immediately executing priority functions. (Up to 8 functions or settings from the set-up menu can be registered.)
- MAG (Memory Auto Grouping) Function allows Memory channels to be automatically categorized in ALL, AIR band, VHF band, UHF band and OTHER.
- VFO Band Skip Function
- Memory Channel Data Transfer to the VFO Register
- Single-Touch Spectrum scope function: Instantly switches the operating screen between "Scope display operation" and "Dual Receive operation" while in MAIN channel operation
- High speed Band Scope function *up to 61 channels centered on the current frequency displayed in VFO mode and up to 21 channels of signal information in memory channel mode
- 1104 Memory Channels including 5 "Home" channels, 50 sets of memories for programmable memory scan and 999 "Basic" memories.
- Built-in 66ch High precision GPS receiver and External GPS device connectivity,
- 1200/9600bps APRS® Data Communication
- Wireless Operation Capability with a Bluetooth® Headset
- WiRES-X Portable Digital Node or HRI-200 Fixed Node capability
- Voice Recording of the received and transmitted audio
- 50W Stable High-Power with Heavy Duty Heat Sink and FACC (Funnel Air-Convection Conductor) Selectable 50W / 25W / 5W
- Micro SD Card Slot (up to 32GB)
Supplied Accessories
- DTMF Microphone SSM-85D
- Radio unit Mounting Bracket
- Control Cable for operation with adjustable front panel mountings
- DC Power Cable
- Operating Manual
More Information
| Allow Backorder in Clerk.io | No |
|---|---|
| Product Condition | New |
| Bar Code/EAN | 5055468399383 |
| Manufacturer | Yaesu |
| Frequency Band | UHF, VHF |
| Frequency MHz | 144 MHz (2m), 70 MHz (4m) |
| Item returned for technician testing period | 14 days |
| Repair period | 90 days |
| Refund period | 14 days |
| Exchange period | 14 days |
Product Attachments
We found other products you might like!
View more about Yaesu MLS-100 - High Power Extension Speaker
View more about Yaesu FVS-2 - Voice Guide Unit
View more about Discontinued Yaesu CT-132 - 6m Control Cable
View more about Yaesu SSM-BT20 Bluetooth Headset
View more about Yaesu SSM-85D Hand Microphone
View more about Yaesu SCU-58 WIRES-X Connection Cable
View more about YAESU SJMK-500 Swing Head Kit
View more about YAESU MMB-103 Mount Bracket For Control Head
Customer Reviews
Price
5
Quality
5
Value
5
Replacement for my FTM-400
Review by
Mish
Purchased this on a whim to allow me to move my FTM-400 to my car from the shack. The 500 is an excellent replacement for the 400 in the shack. However I wouldn't want to use it mobile as the screen is a little too small and I just prefer the way the 400 works and the fact I can just have the larger screen on the dash with the rest of the radio tucked out of sight.
Price
5
Quality
5
Value
5
Digital
Review by
Mark
My first step into digital, wow what a radio, this one has it all 2m 70cm & Digital.
Easy to use and simple to setup..
Easy to use and simple to setup..
Price
4
Quality
5
Value
5
FTM-500DE
Review by
GMOUWV
So far so good. I’ve only had it a couple of weeks and still programming. Much better than the FTM-200DE and Japanese, not made in China, so much better quality. Thank you Moonraker for sorting things out.
Price
5
Quality
5
Value
5
Perfect for the shack
Review by
G0JIW
As an owner of the FTM-400 that I use in my car I was looking for something similar for the shack and the FTM-500 meets my needs.
Is it better than my FTM-400? Well yes and no. The screen is smaller and some of the sub menus and controls are more ‘hidden’ than on the FTM-400. However, as I wasn’t going to use the radio in the car. It perfectly useable in the shack.
I haven’t set up the APRS as the radio will not be going mobile. That said it’s looks identical to the set up on the FTM-400 so I would expect it to be as good in operation.
On the whole I feel a lot of thought has gone into making the 500 as usable and as good if not better in some respects than the 400.
Build quality is every bit as good as every other Yaesu radio I have ever owned (I currently have four) and planning on a fifth and possibly a sixth! Okay, I admit it, I’m a fan.
Is it better than my FTM-400? Well yes and no. The screen is smaller and some of the sub menus and controls are more ‘hidden’ than on the FTM-400. However, as I wasn’t going to use the radio in the car. It perfectly useable in the shack.
I haven’t set up the APRS as the radio will not be going mobile. That said it’s looks identical to the set up on the FTM-400 so I would expect it to be as good in operation.
On the whole I feel a lot of thought has gone into making the 500 as usable and as good if not better in some respects than the 400.
Build quality is every bit as good as every other Yaesu radio I have ever owned (I currently have four) and planning on a fifth and possibly a sixth! Okay, I admit it, I’m a fan.
Price
4
Quality
5
Value
5
Good
Review by
2e0wsj
Very good. Radio equipment and very good company. Go out the way to help you
Price
5
Quality
5
Value
5
Nice compact dual bander
Review by
Mick
I read the review in practical wireless and with recently selling my base radio I thought I’d treat myself to a ftm-500d. I’m so pleased with it, the display is bright and responsive, quality received audio and great sensitivity reciever, highly recommendable especially while yaesu cashback offer is on ????
Price
4
Quality
5
Value
4
The perfect mobile radio.
Review by
Documentally
I bought this radio for the car but it's not left the shack. It's too much fun. It's well made and feels quality. It's not cheep mind but the cash back offer at the time helped.
The staff at Moonraker were as helpful as they always are and a pleasure to deal with.
The radio comes empty and I would have liked a Moonraker special code plug in it. But I paid £20 for the RT systems programming software and have been building my own repeater list with that.
The menu on the radio is more intuitive than I remember from Yaesu and an improvement on their older models. Still takes a bit of getting used to but it's fun to explore and customise. It came with a power lead, mic and main bracket but I was disappointed to not get a bracket for the head as that is how I imagine most users will be fitting it. I thought that was a bit tight of Yaesu to leave that out of the box along with a longer connection cable for the screen.
That said I have managed to pick up a 3d printed mount for £6 and a 1m head connection lead for £2.50.
I've also made an extra power lead for the car £3.50 for the plug. Looking forward to being able to swap between the car and the shack.
On the whole, great radio with great audio (as others have told me) and APRS is fun on the move.
The staff at Moonraker were as helpful as they always are and a pleasure to deal with.
The radio comes empty and I would have liked a Moonraker special code plug in it. But I paid £20 for the RT systems programming software and have been building my own repeater list with that.
The menu on the radio is more intuitive than I remember from Yaesu and an improvement on their older models. Still takes a bit of getting used to but it's fun to explore and customise. It came with a power lead, mic and main bracket but I was disappointed to not get a bracket for the head as that is how I imagine most users will be fitting it. I thought that was a bit tight of Yaesu to leave that out of the box along with a longer connection cable for the screen.
That said I have managed to pick up a 3d printed mount for £6 and a 1m head connection lead for £2.50.
I've also made an extra power lead for the car £3.50 for the plug. Looking forward to being able to swap between the car and the shack.
On the whole, great radio with great audio (as others have told me) and APRS is fun on the move.
Price
4
Quality
5
Value
5
Worth a closer look, very pleasant to use.
Review by
Malcolm M0GXZ
I didn’t think I needed an FTM-500 (as I really like my 100) until last week at the RSGB Convention where Yaesu had the whole range on display.
It is much nicer in real life than you can tell from pictures.
Anyway, I bought one and even after just a week of using it - it really is a nice product.
It doesn’t do a lot more than my old 100, but it does everything with much more style.
Particularly like the customisable quick menu, where you can put your most used functions.
Also very sensitive on RX , scanning brings in more repeaters than other kit.
If anyone was in 2 minds about getting one , I would say you will be impressed especially while there is an offer on.
It is much nicer in real life than you can tell from pictures.
Anyway, I bought one and even after just a week of using it - it really is a nice product.
It doesn’t do a lot more than my old 100, but it does everything with much more style.
Particularly like the customisable quick menu, where you can put your most used functions.
Also very sensitive on RX , scanning brings in more repeaters than other kit.
If anyone was in 2 minds about getting one , I would say you will be impressed especially while there is an offer on.
Price
4
Quality
5
Value
5
Clear well laid out Front
Review by
Pete G6LTB
Bought to cover FM,Fusion and Airband. It seems to cover all with sensitive receive and clear good audio. If SSB had been included it would be a world beater.As with all new rigs menu driven but the important vol,sgl, band selection accessed easily from controls on the front.Touch screen actually works better than I thought it would taking its screen size into account.
