One of the most essential elements of a radio is an antenna tuner. So, which one should you go for? We've completed a product review of the mAT-10 Automatic Antenna Tuner, so you know exactly what you're getting if you decide to purchase it.
Specifications
-
Frequency coverage of 1.8 to 54 MHz
-
Impedance matching range of 5 and 1,500 ohms
-
16,000 stored memories
-
Rated up to 30 Watts on SSB and CW
-
Rated 5 Watts on key-down digital modes
-
Two 10440 lithium batteries (included)

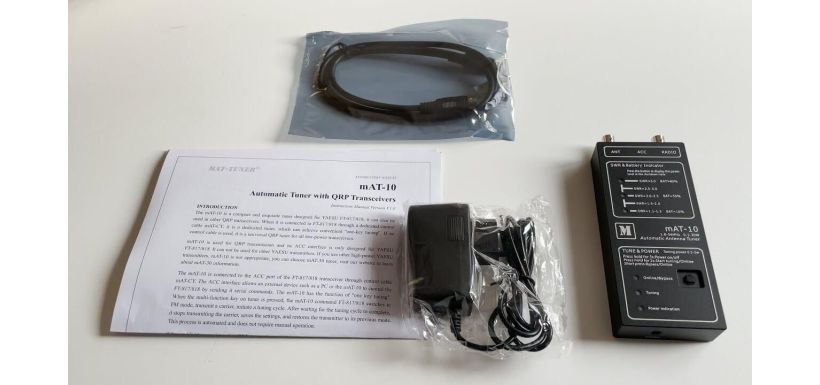

The mAT-10
Overall, the mAT-10 is a small, portable antenna tuner that looks smart and will be a reliable option for amateur radio users.
Memories
The mAT-10 has an impressive 16,000 stored memories available. Coupled with a recall time of just 0.1 seconds for previously stored frequencies and a maximum of five seconds for newly tuned frequencies, it’s a robust and reliable tuner.
Power
The mAT-10 takes two lithium batteries. They can last for months as there is next to no drain when it's not in use.
Ports
A charging port is on the bottom of the device, and on top, there is a B and C connector for the antenna and transceiver. An accessory port lets you connect your Yaesu FT-817 or FT-818 for control purposes.
If you don't have one of these radios, you can still connect any QRP radio to the mAT-10 using the front panel's push button, allowing manual tuning.
LEDs
There are three status LEDs on the mAT-10. The first set is dedicated to the SWR reading and the battery level. A second set of status lights show if the device is turned on, off, or in bypass mode.
General
You'll find a single push button that is used for powering on and off and bypassing and activating manual tuning.
Size and Weight
If you're looking for a smaller device with a size and weight that you can take with you, this is undoubtedly the one for you. It's backpack-friendly.
Purchase the mAT-10 Automatic Antenna Tuner Today!
The mAT-10 is a solid automatic antenna tuner, great for home use or for taking on the go. Check it out in more detail here!
